Geometry

Functions

Center Point

Returns the center point of the circle.

Parameters:

Name	Type	Description
c	`Circle`	The circle to get the center point

Return Type: Point 2d

Signatures:

point_2d center_point(const circle &c)

public static Point2D Geometry.CenterPoint(Circle c);
public static Point2D SplashKit.CenterPoint(Circle c);

def center_point(c):

function CenterPoint(const c: Circle): Point2D

Circle At

Returns a circle at the indicated point and radius.

Parameters:

Name	Type	Description
pt	`Point 2d`	The location of the center of the circle
radius	`Double`	The radius of the circle

Return Type: Circle

Signatures:

circle circle_at(const point_2d &pt, double radius)

public static Circle Geometry.CircleAt(Point2D pt, double radius);
public static Circle SplashKit.CircleAt(Point2D pt, double radius);

def circle_at(pt, radius):

function CircleAt(const pt: Point2D; radius: Double): Circle

Circle At

Returns a circle at the indicated point and radius.

Parameters:

Name	Type	Description
x	`Double`	The x location of the circle
y	`Double`	The y location of the circle
radius	`Double`	The radius of the circle

Return Type: Circle

Signatures:

circle circle_at(double x, double y, double radius)

public static Circle Geometry.CircleAt(double x, double y, double radius);
public static Circle SplashKit.CircleAt(double x, double y, double radius);

def circle_at_from_points(x, y, radius):

function CircleAt(x: Double; y: Double; radius: Double): Circle

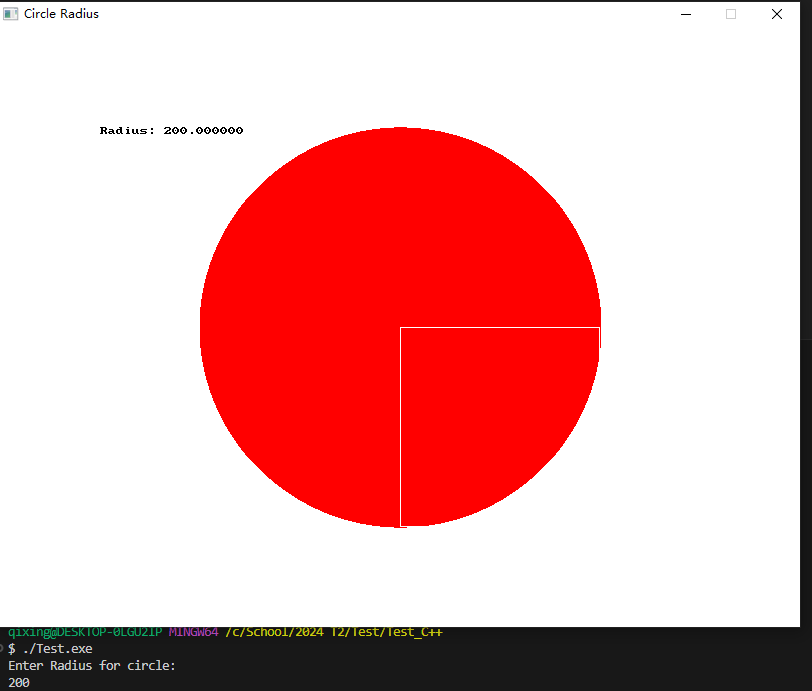

Circle Radius

Returns the circle radius.

Parameters:

Name	Type	Description
c	`Circle`	The circle

Return Type: Float

Signatures:

float circle_radius(const circle c)

public static float Geometry.CircleRadius(Circle c);
public static float SplashKit.CircleRadius(Circle c);

def circle_radius(c):

function CircleRadius(c: Circle): Single

Circle X

Returns the circle x value.

Parameters:

Name	Type	Description
c	`Circle`	The circle

Return Type: Float

Signatures:

float circle_x(const circle &c)

public static float Geometry.CircleX(Circle c);
public static float SplashKit.CircleX(Circle c);

def circle_x(c):

function CircleX(const c: Circle): Single

Circle Y

Returns the circle y value.

Parameters:

Name	Type	Description
c	`Circle`	The circle

Return Type: Float

Signatures:

float circle_y(const circle &c)

public static float Geometry.CircleY(Circle c);
public static float SplashKit.CircleY(Circle c);

def circle_y(c):

function CircleY(const c: Circle): Single

Circles Intersect

Detects if two circles intersect. This can be used to detect collisions between bounding circles.

Parameters:

Name	Type	Description
c1	`Circle`	The circle to test if intersects with c2
c2	`Circle`	The circle to test if intersects with c1

Return Type: Boolean

Signatures:

bool circles_intersect(circle c1, circle c2)

public static bool Geometry.CirclesIntersect(Circle c1, Circle c2);
public static bool SplashKit.CirclesIntersect(Circle c1, Circle c2);

def circles_intersect(c1, c2):

function CirclesIntersect(c1: Circle; c2: Circle): Boolean

Circles Intersect

Detects if two circles intersect. This can be used to detect collisions between bounding circles. The circle data is passed in as individual values.

Parameters:

Name	Type	Description
c1_x	`Double`	the x location of the first circle
c1_y	`Double`	the y location of the first circle
c1_radius	`Double`	the radius of the first circle
c2_x	`Double`	the x location of the second circle
c2_y	`Double`	the y location of the second circle
c2_radius	`Double`	the radius of the second circle

Return Type: Boolean

Signatures:

bool circles_intersect(double c1_x, double c1_y, double c1_radius, double c2_x, double c2_y, double c2_radius)

public static bool Geometry.CirclesIntersect(double c1X, double c1Y, double c1Radius, double c2X, double c2Y, double c2Radius);
public static bool SplashKit.CirclesIntersect(double c1X, double c1Y, double c1Radius, double c2X, double c2Y, double c2Radius);

def circles_intersect_using_values(c1_x, c1_y, c1_radius, c2_x, c2_y, c2_radius):

function CirclesIntersect(c1X: Double; c1Y: Double; c1Radius: Double; c2X: Double; c2Y: Double; c2Radius: Double): Boolean

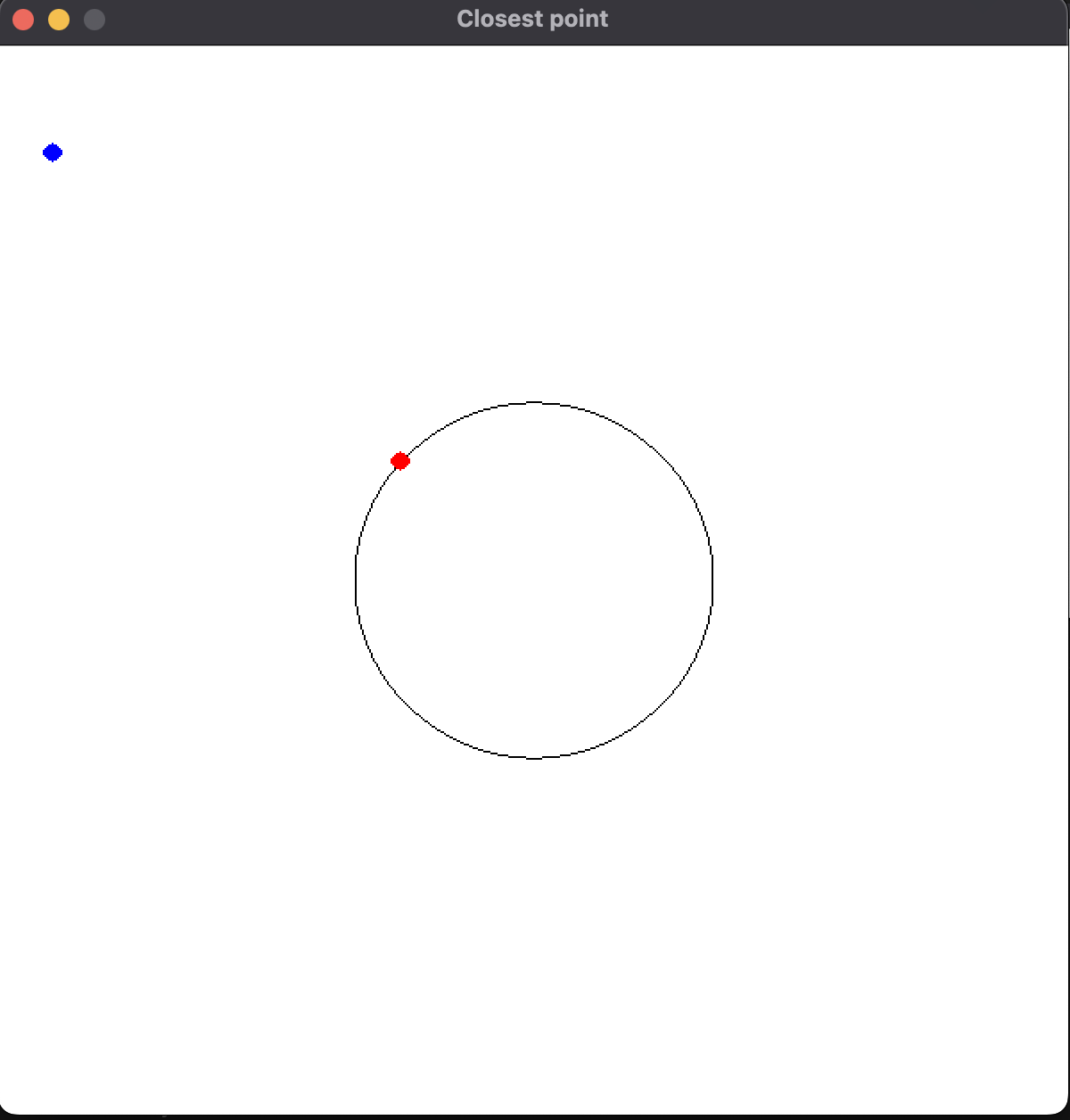

Closest Point On Circle

The closest point on the circle to the given point.

Parameters:

Name	Type	Description
from_pt	`Point 2d`	The point to test from
c	`Circle`	The circle you want to get a point on its circumference

Return Type: Point 2d

Signatures:

point_2d closest_point_on_circle(const point_2d &from_pt, const circle &c)

public static Point2D Geometry.ClosestPointOnCircle(Point2D fromPt, Circle c);
public static Point2D SplashKit.ClosestPointOnCircle(Point2D fromPt, Circle c);

def closest_point_on_circle(from_pt, c):

function ClosestPointOnCircle(const fromPt: Point2D; const c: Circle): Point2D

Closest Point On Line From Circle

Returns the closest point on a line to a circle.

Parameters:

Name	Type	Description
c	`Circle`	The circle
l	`Line`	The line

Return Type: Point 2d

Signatures:

point_2d closest_point_on_line_from_circle(const circle &c, const line &l)

public static Point2D Geometry.ClosestPointOnLineFromCircle(Circle c, Line l);
public static Point2D SplashKit.ClosestPointOnLineFromCircle(Circle c, Line l);

def closest_point_on_line_from_circle(c, l):

function ClosestPointOnLineFromCircle(const c: Circle; const l: Line): Point2D

Closest Point On Rect From Circle

Returns the closest point on a rectangle to a circle.

Parameters:

Name	Type	Description
c	`Circle`	The circle
rect	`Rectangle`	The rectangle

Return Type: Point 2d

Signatures:

point_2d closest_point_on_rect_from_circle(const circle &c, const rectangle &rect)

public static Point2D Geometry.ClosestPointOnRectFromCircle(Circle c, Rectangle rect);
public static Point2D SplashKit.ClosestPointOnRectFromCircle(Circle c, Rectangle rect);

def closest_point_on_rect_from_circle(c, rect):

function ClosestPointOnRectFromCircle(const c: Circle; const rect: Rectangle): Point2D

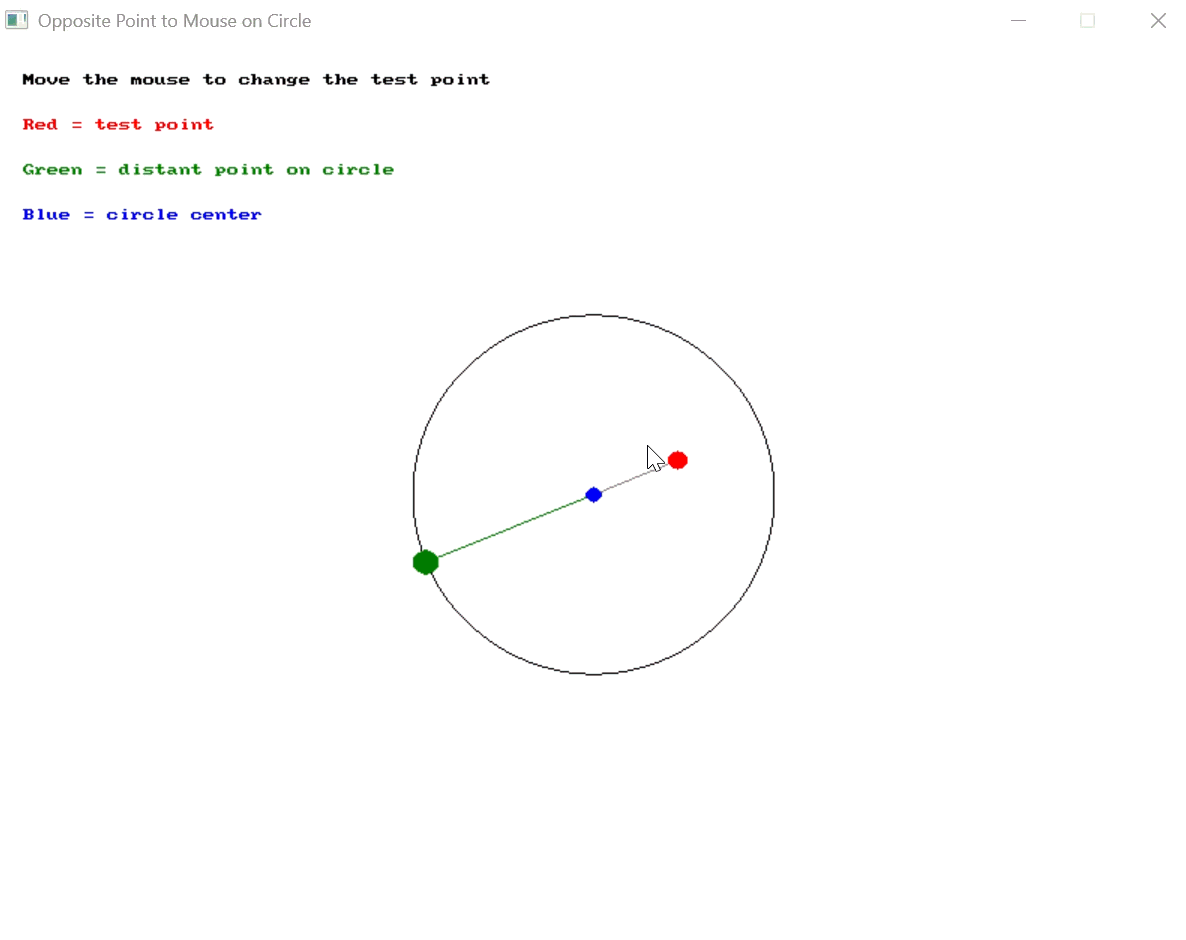

Distant Point On Circle

The furthest point on the circle to the given point.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point to test from
c	`Circle`	The circle you want to get a point on its circumference

Return Type: Point 2d

Signatures:

point_2d distant_point_on_circle(const point_2d &pt, const circle &c)

public static Point2D Geometry.DistantPointOnCircle(Point2D pt, Circle c);
public static Point2D SplashKit.DistantPointOnCircle(Point2D pt, Circle c);

def distant_point_on_circle(pt, c):

function DistantPointOnCircle(const pt: Point2D; const c: Circle): Point2D

Distant Point On Circle Heading

Determines the opposite side of a circle given a collision point and a heading.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point from which the test is being made
c	`Circle`	The circle
heading	`Vector 2d`	The direction the point is heading
opposite_pt	`Point 2d`	After the call, this is set to the point on the opposite side of the circle from pt when it is heading in the given direction.

Return Type: Boolean

Signatures:

bool distant_point_on_circle_heading(const point_2d &pt, const circle &c, const vector_2d &heading, point_2d &opposite_pt)

public static bool Geometry.DistantPointOnCircleHeading(Point2D pt, Circle c, Vector2D heading, ref Point2D oppositePt);
public static bool SplashKit.DistantPointOnCircleHeading(Point2D pt, Circle c, Vector2D heading, ref Point2D oppositePt);

def distant_point_on_circle_heading(pt, c, heading, opposite_pt):

function DistantPointOnCircleHeading(const pt: Point2D; const c: Circle; const heading: Vector2D; var oppositePt: Point2D): Boolean

Ray Circle Intersect Distance

Calculates the distance from a ray cast from a point to a given circle.

Parameters:

Name	Type	Description
ray_origin	`Point 2d`	The origin of the ray
ray_heading	`Vector 2d`	The direction of the ray
c	`Circle`	The circle being tested

Return Type: Float

Signatures:

float ray_circle_intersect_distance(const point_2d &ray_origin, const vector_2d &ray_heading, const circle &c)

public static float Geometry.RayCircleIntersectDistance(Point2D rayOrigin, Vector2D rayHeading, Circle c);
public static float SplashKit.RayCircleIntersectDistance(Point2D rayOrigin, Vector2D rayHeading, Circle c);

def ray_circle_intersect_distance(ray_origin, ray_heading, c):

function RayCircleIntersectDistance(const rayOrigin: Point2D; const rayHeading: Vector2D; const c: Circle): Single

Tangent Points

Returns the two tangent points on the circle given the indicated point.

Parameters:

Name	Type	Description
from_pt	`Point 2d`	The source point
c	`Circle`	The circle
p1	`Point 2d`	If this returns true, then `p1` contains one of the points
p2	`Point 2d`	If this returns true, then `p2` contains one of the points

Return Type: Boolean

Signatures:

bool tangent_points(const point_2d &from_pt, const circle &c, point_2d &p1, point_2d &p2)

public static bool Geometry.TangentPoints(Point2D fromPt, Circle c, ref Point2D p1, ref Point2D p2);
public static bool SplashKit.TangentPoints(Point2D fromPt, Circle c, ref Point2D p1, ref Point2D p2);

def tangent_points(from_pt, c, p1, p2):

function TangentPoints(const fromPt: Point2D; const c: Circle; var p1: Point2D; var p2: Point2D): Boolean

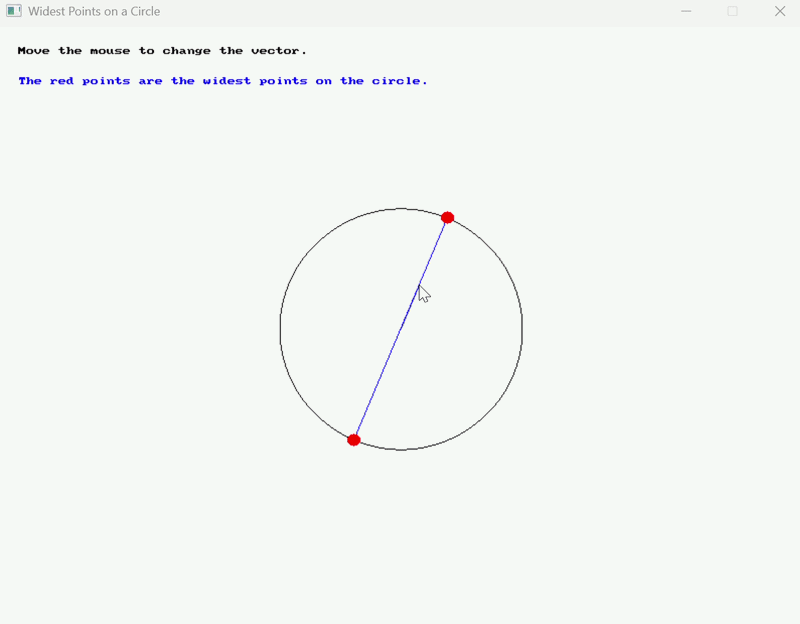

Widest Points

Calculates the two points on a circles radius that lie along the given vector. This represents the points on the circle when the vector is placed at the circle’s center point.

Parameters:

Name	Type	Description
c	`Circle`	The circle
along	`Vector 2d`	The vector representing the line along which the points lie.
pt1	`Point 2d`	After the call, this is set to one of the widest points
pt2	`Point 2d`	After the call, this is set to one of the widest points

Signatures:

void widest_points(const circle &c, const vector_2d &along, point_2d &pt1, point_2d &pt2)

public static void Geometry.WidestPoints(Circle c, Vector2D along, ref Point2D pt1, ref Point2D pt2);
public static void SplashKit.WidestPoints(Circle c, Vector2D along, ref Point2D pt1, ref Point2D pt2);

def widest_points(c, along, pt1, pt2):

procedure WidestPoints(const c: Circle; const along: Vector2D; var pt1: Point2D; var pt2: Point2D)

Cosine

Returns the cosine of the supplied angle (in degrees).

Parameters:

Name	Type	Description
degrees	`Float`	The angle in degrees

Return Type: Float

Signatures:

float cosine(float degrees)

public static float Geometry.Cosine(float degrees);
public static float SplashKit.Cosine(float degrees);

def cosine(degrees):

function Cosine(degrees: Single): Single

Sine

Returns the sine of the supplied angle (in degrees).

Parameters:

Name	Type	Description
degrees	`Float`	The angle in degrees

Return Type: Float

Signatures:

float sine(float degrees)

public static float Geometry.Sine(float degrees);
public static float SplashKit.Sine(float degrees);

def sine(degrees):

function Sine(degrees: Single): Single

Tangent

Returns the tangent of the supplied angle (in degrees).

Parameters:

Name	Type	Description
degrees	`Float`	The angle in degrees

Return Type: Float

Signatures:

float tangent(float degrees)

public static float Geometry.Tangent(float degrees);
public static float SplashKit.Tangent(float degrees);

def tangent(degrees):

function Tangent(degrees: Single): Single

Closest Point On Line

Gets the closest point on the line to a given point.

Parameters:

Name	Type	Description
from_pt	`Point 2d`	The point to test (usually somewhere near the line)
l	`Line`	The line

Return Type: Point 2d

Signatures:

point_2d closest_point_on_line(const point_2d from_pt, const line &l)

public static Point2D Geometry.ClosestPointOnLine(Point2D fromPt, Line l);
public static Point2D SplashKit.ClosestPointOnLine(Point2D fromPt, Line l);

def closest_point_on_line(from_pt, l):

function ClosestPointOnLine(fromPt: Point2D; const l: Line): Point2D

Closest Point On Lines

Get the point closest to from pt that is on one of the supplied lines.

Parameters:

Name	Type	Description
from_pt	`Point 2d`	The point to test
lines	`Vector`	The lines to check
line_idx	`Integer`	After the call this will store the index of the line that had the matching point.

Return Type: Point 2d

Signatures:

point_2d closest_point_on_lines(const point_2d from_pt, const vector<line> &lines, int &line_idx)

public static Point2D Geometry.ClosestPointOnLines(Point2D fromPt, List<Line> lines, ref int lineIdx);
public static Point2D SplashKit.ClosestPointOnLines(Point2D fromPt, List<Line> lines, ref int lineIdx);

def closest_point_on_lines(from_pt, lines, line_idx):

function ClosestPointOnLines(fromPt: Point2D; const lines: ArrayOfLine; var lineIdx: Integer): Point2D

Line From

Create a line from one point to another.

Parameters:

Name	Type	Description
start	`Point 2d`	The start of the line
end_pt	`Point 2d`	The end of the line

Return Type: Line

Signatures:

line line_from(const point_2d &start, const point_2d &end_pt)

public static Line Geometry.LineFrom(Point2D start, Point2D endPt);
public static Line SplashKit.LineFrom(Point2D start, Point2D endPt);

def line_from_point_to_point(start, end_pt):

function LineFrom(const start: Point2D; const endPt: Point2D): Line

Line From

Creates a line that starts at a point, and follows a given vector.

Parameters:

Name	Type	Description
start	`Point 2d`	The start of the line
offset	`Vector 2d`	The offset to the end of the line

Return Type: Line

Signatures:

line line_from(const point_2d &start, const vector_2d &offset)

public static Line Geometry.LineFrom(Point2D start, Vector2D offset);
public static Line SplashKit.LineFrom(Point2D start, Vector2D offset);

def line_from_start_with_offset(start, offset):

function LineFrom(const start: Point2D; const offset: Vector2D): Line

Line From

Gets a line that goes from the origin and ends at the end of the vector.

Parameters:

Name	Type	Description
v	`Vector 2d`	The offset from the origin for the end of the line

Return Type: Line

Signatures:

line line_from(const vector_2d &v)

public static Line Geometry.LineFrom(Vector2D v);
public static Line SplashKit.LineFrom(Vector2D v);

def line_from_vector(v):

function LineFrom(const v: Vector2D): Line

Line From

Create a line from one point to another.

Parameters:

Name	Type	Description
x1	`Double`	The x value of the start of the line
y1	`Double`	The y value of the start of the line
x2	`Double`	The x value of the end of the line
y2	`Double`	The y value of the end of the line

Return Type: Line

Signatures:

line line_from(double x1, double y1, double x2, double y2)

public static Line Geometry.LineFrom(double x1, double y1, double x2, double y2);
public static Line SplashKit.LineFrom(double x1, double y1, double x2, double y2);

def line_from(x1, y1, x2, y2):

function LineFrom(x1: Double; y1: Double; x2: Double; y2: Double): Line

Line Intersection Point

Returns the point at which two lines would intersect. This point may lie past the end of one or both lines.

Parameters:

Name	Type	Description
line1	`Line`	The first line
line2	`Line`	The other line
pt	`Point 2d`	The resulting point where they intersect

Return Type: Boolean

Signatures:

bool line_intersection_point(const line &line1, const line &line2, point_2d &pt)

public static bool Geometry.LineIntersectionPoint(Line line1, Line line2, ref Point2D pt);
public static bool SplashKit.LineIntersectionPoint(Line line1, Line line2, ref Point2D pt);

def line_intersection_point(line1, line2, pt):

function LineIntersectionPoint(const line1: Line; const line2: Line; var pt: Point2D): Boolean

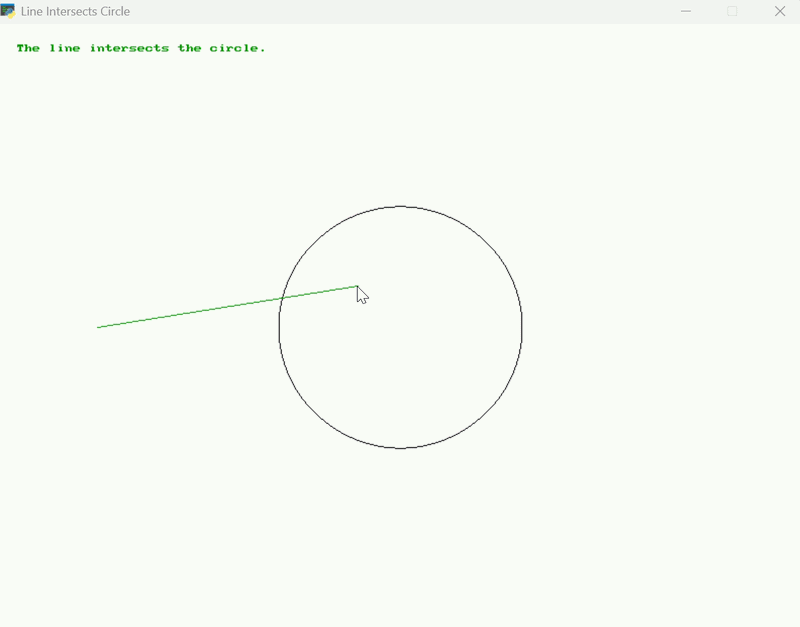

Line Intersects Circle

Returns true if the line intersects the circle.

Parameters:

Name	Type	Description
l	`Line`	The line
c	`Circle`	The circle

Return Type: Boolean

Signatures:

bool line_intersects_circle(const line &l, const circle &c)

public static bool Geometry.LineIntersectsCircle(Line l, Circle c);
public static bool SplashKit.LineIntersectsCircle(Line l, Circle c);

def line_intersects_circle(l, c):

function LineIntersectsCircle(const l: Line; const c: Circle): Boolean

Line Intersects Lines

Returns true if the line intersects any of the lines.

Parameters:

Name	Type	Description
l	`Line`	The line to check
lines	`Vector`	The lines to check against

Return Type: Boolean

Signatures:

bool line_intersects_lines(const line &l, const vector<line> &lines)

public static bool Geometry.LineIntersectsLines(Line l, List<Line> lines);
public static bool SplashKit.LineIntersectsLines(Line l, List<Line> lines);

def line_intersects_lines(l, lines):

function LineIntersectsLines(const l: Line; const lines: ArrayOfLine): Boolean

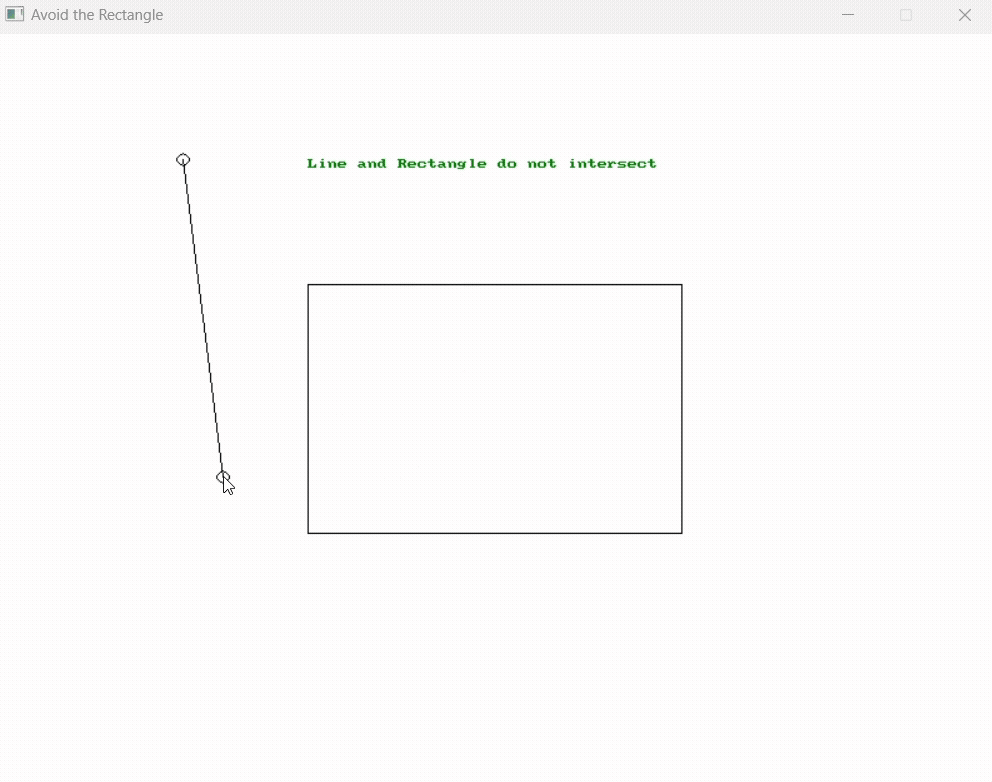

Line Intersects Rect

Returns true if the line intersects the rectangle.

Parameters:

Name	Type	Description
l	`Line`	The line
rect	`Rectangle`	The rectangle

Return Type: Boolean

Signatures:

bool line_intersects_rect(const line &l, const rectangle &rect)

public static bool Geometry.LineIntersectsRect(Line l, Rectangle rect);
public static bool SplashKit.LineIntersectsRect(Line l, Rectangle rect);

def line_intersects_rect(l, rect):

function LineIntersectsRect(const l: Line; const rect: Rectangle): Boolean

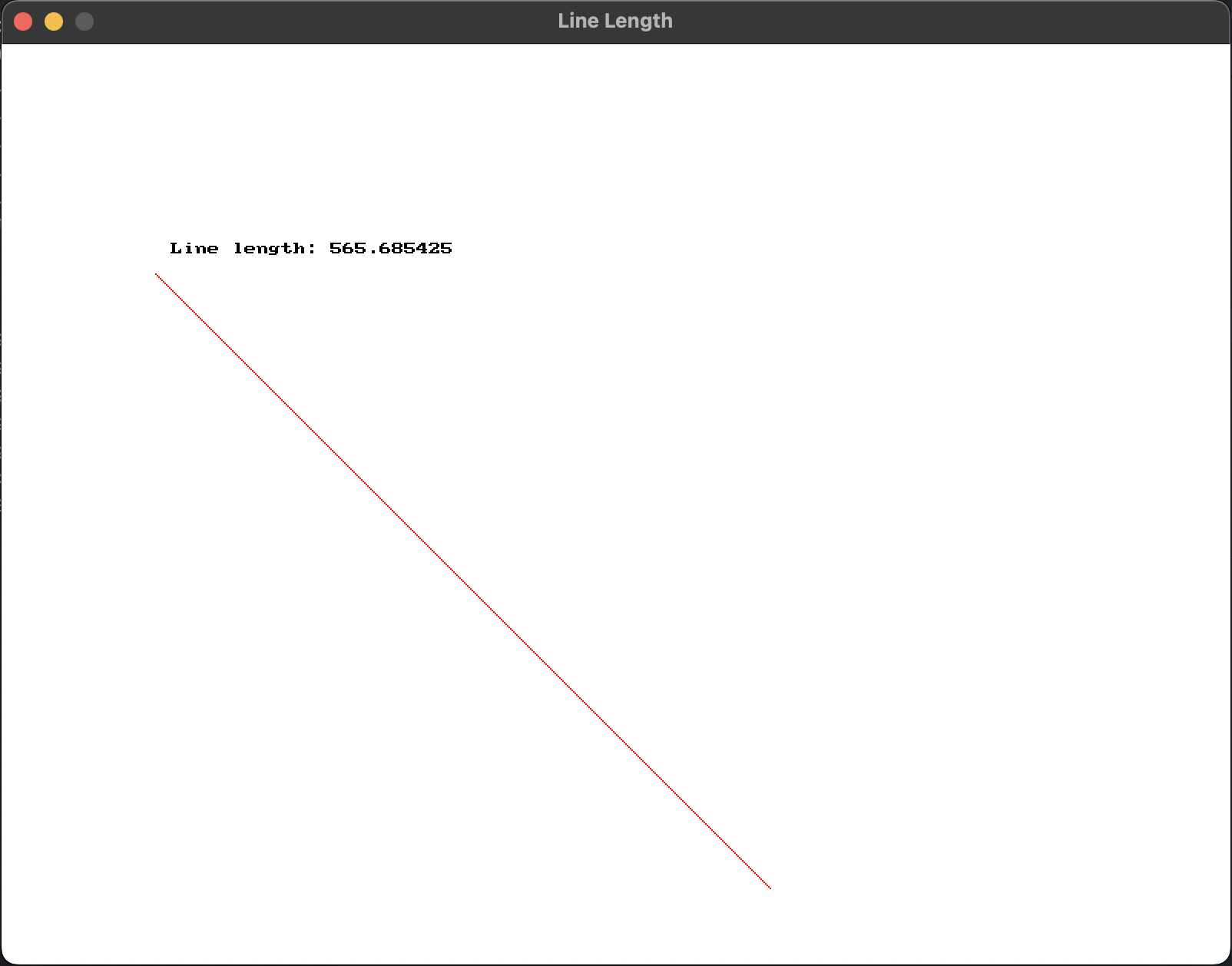

Line Length

Returns the length of a line.

Parameters:

Name	Type	Description
l	`Line`	The line

Return Type: Float

Signatures:

float line_length(const line &l)

public static float Geometry.LineLength(Line l);
public static float SplashKit.LineLength(Line l);

def line_length(l):

function LineLength(const l: Line): Single

Line Length Squared

Returns the squared length of the line. You can also get the Line Length.

Parameters:

Name	Type	Description
l	`Line`	The line

Return Type: Float

Signatures:

float line_length_squared(const line &l)

public static float Geometry.LineLengthSquared(Line l);
public static float SplashKit.LineLengthSquared(Line l);

def line_length_squared(l):

function LineLengthSquared(const l: Line): Single

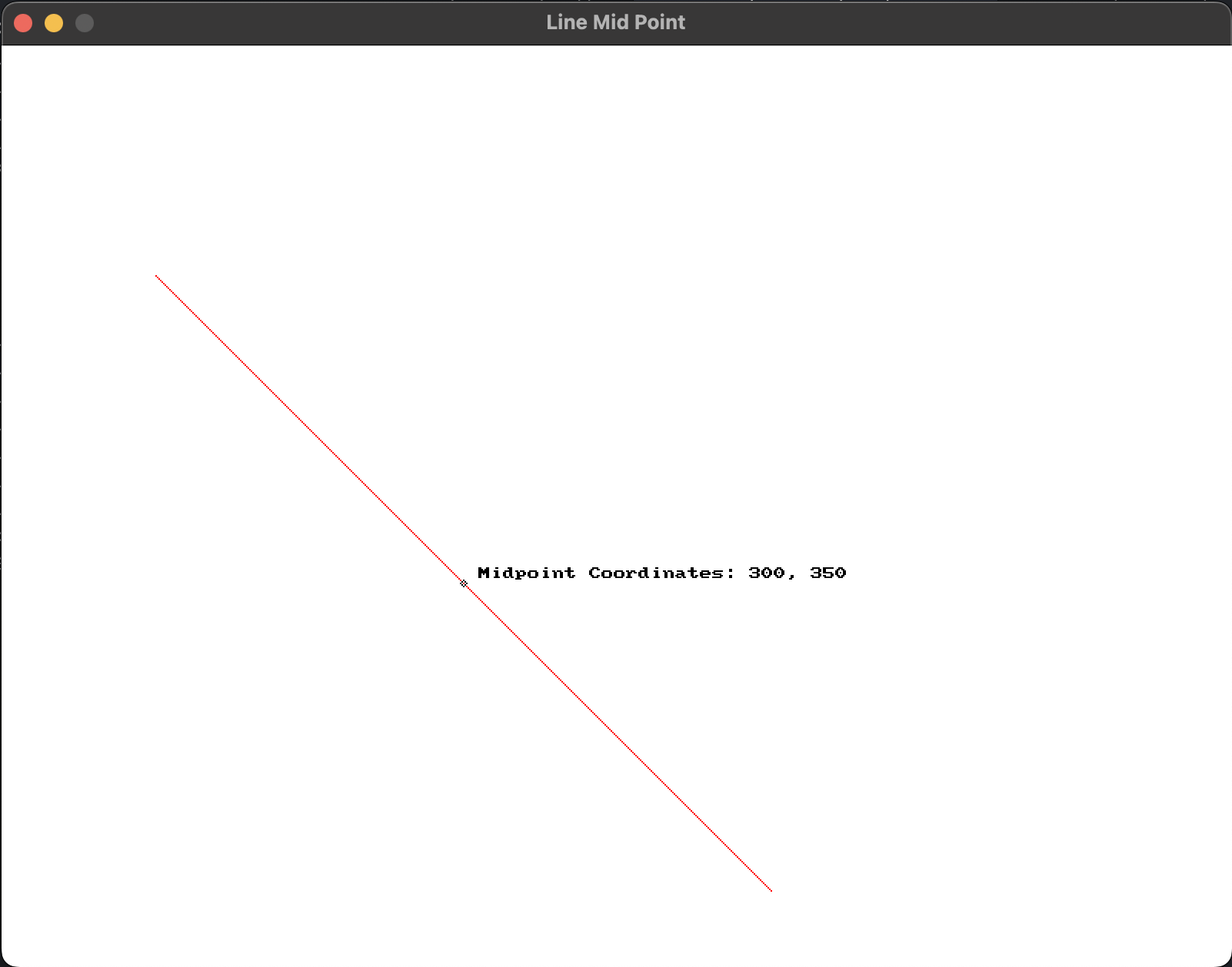

Line Mid Point

Returns the center point of the line.

Parameters:

Name	Type	Description
l	`Line`	The line

Return Type: Point 2d

Signatures:

point_2d line_mid_point(const line &l)

public static Point2D Geometry.LineMidPoint(Line l);
public static Point2D SplashKit.LineMidPoint(Line l);

def line_mid_point(l):

function LineMidPoint(const l: Line): Point2D

Line Normal

The line normal (a perpendicular vector).

Parameters:

Name	Type	Description
l	`Line`	The line

Return Type: Vector 2d

Signatures:

vector_2d line_normal(const line &l)

public static Vector2D Geometry.LineNormal(Line l);
public static Vector2D SplashKit.LineNormal(Line l);

def line_normal(l):

function LineNormal(const l: Line): Vector2D

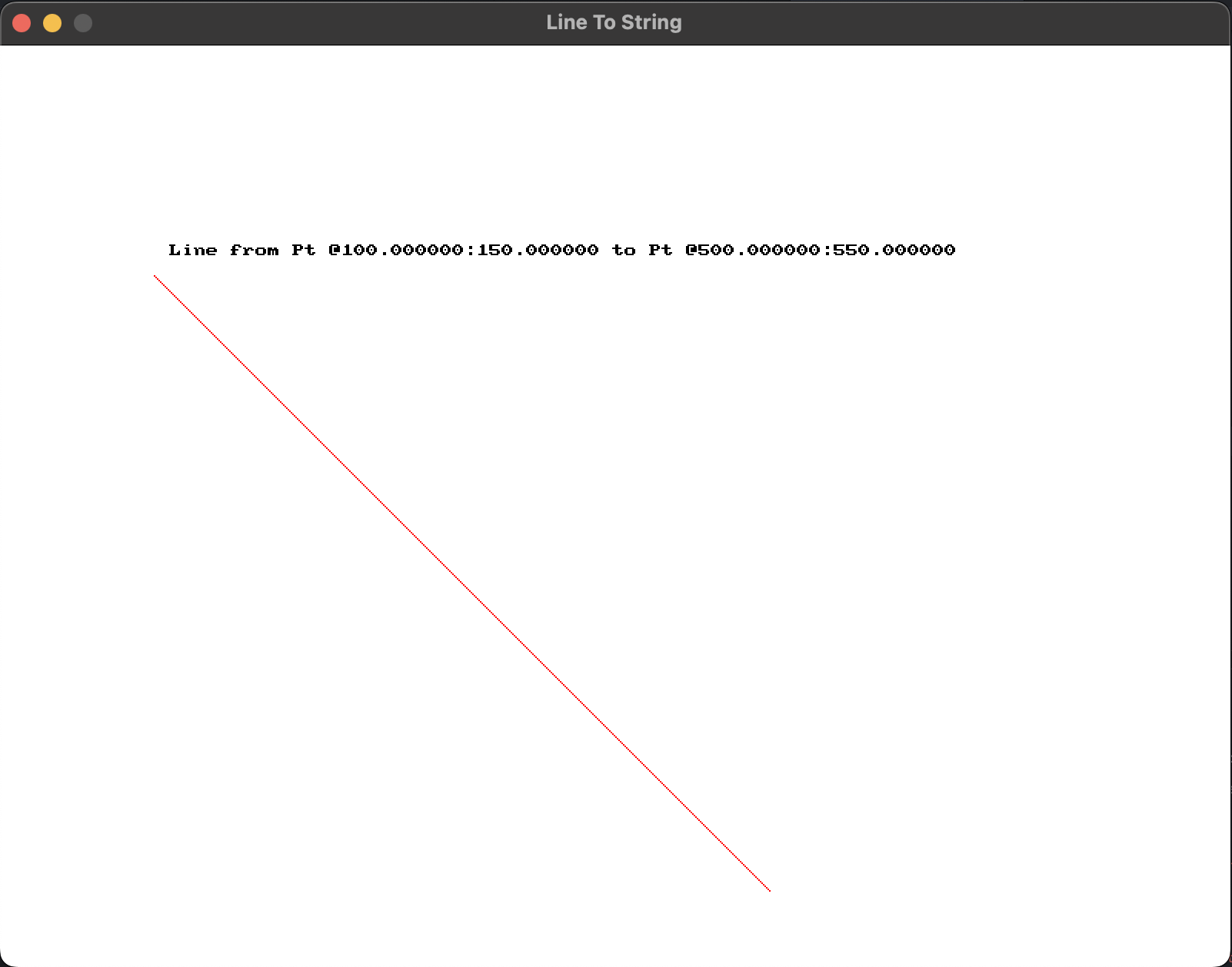

Line To String

Returns a text description of the line.

Parameters:

Name	Type	Description
ln	`Line`	The line

Return Type: String

Signatures:

string line_to_string(const line &ln)

public static string Geometry.LineToString(Line ln);
public static string SplashKit.LineToString(Line ln);

def line_to_string(ln):

function LineToString(const ln: Line): String

Lines From

Returns an array of lines from a supplied rectangle.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle to get the lines from

Return Type: Vector

Signatures:

vector<line> lines_from(const rectangle &rect)

public static List<Line> Geometry.LinesFrom(Rectangle rect);
public static List<Line> SplashKit.LinesFrom(Rectangle rect);

def lines_from_rectangle(rect):

function LinesFrom(const rect: Rectangle): ArrayOfLine

Lines From

Returns an array of lines from the details in the triangle.

Parameters:

Name	Type	Description
t	`Triangle`	The triangle

Return Type: Vector

Signatures:

vector<line> lines_from(const triangle &t)

public static List<Line> Geometry.LinesFrom(Triangle t);
public static List<Line> SplashKit.LinesFrom(Triangle t);

def lines_from_triangle(t):

function LinesFrom(const t: Triangle): ArrayOfLine

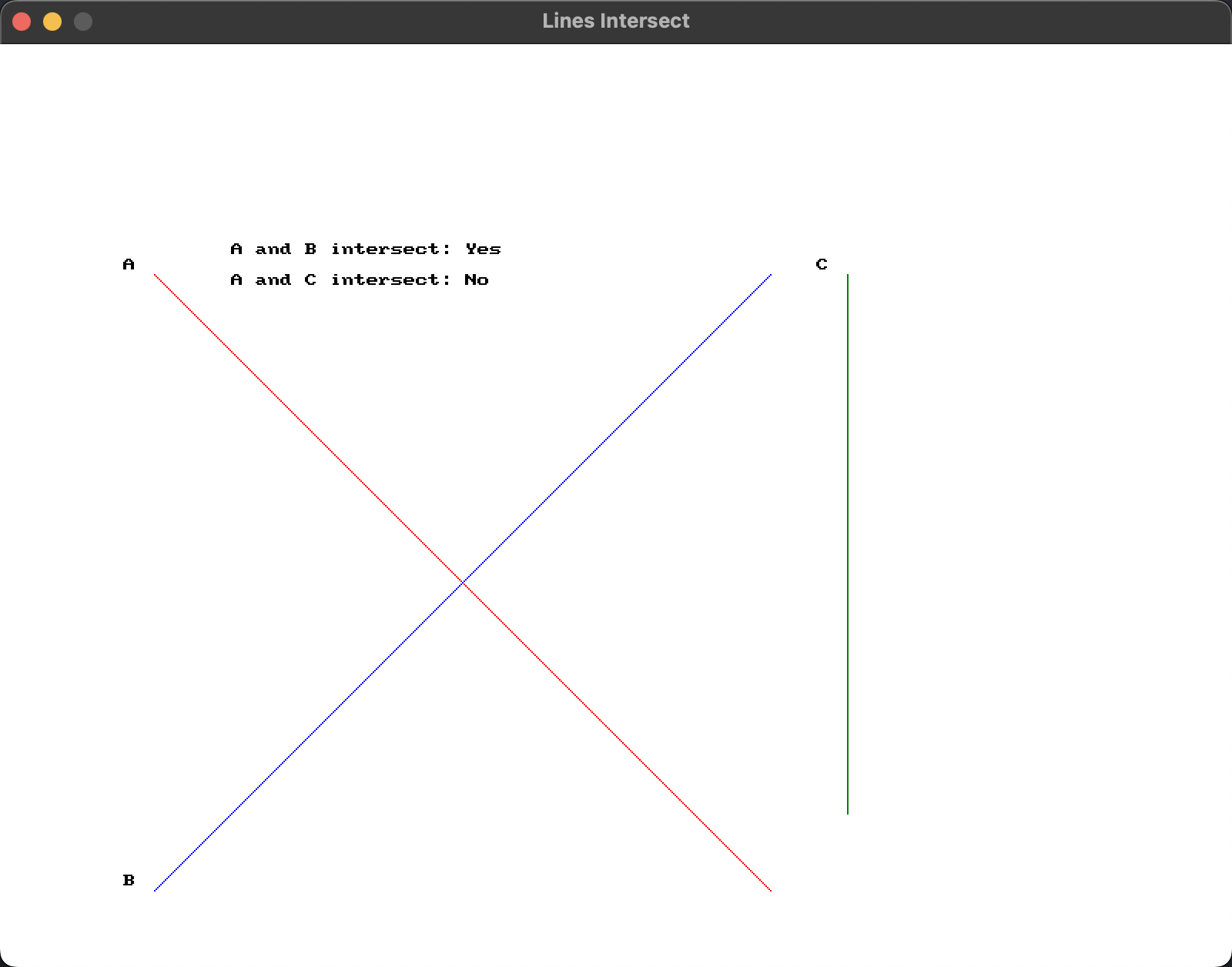

Lines Intersect

Returns true if the two lines intersect.

Parameters:

Name	Type	Description
l1	`Line`	The first line
l2	`Line`	The other line

Return Type: Boolean

Signatures:

bool lines_intersect(const line &l1, const line &l2)

public static bool Geometry.LinesIntersect(Line l1, Line l2);
public static bool SplashKit.LinesIntersect(Line l1, Line l2);

def lines_intersect(l1, l2):

function LinesIntersect(const l1: Line; const l2: Line): Boolean

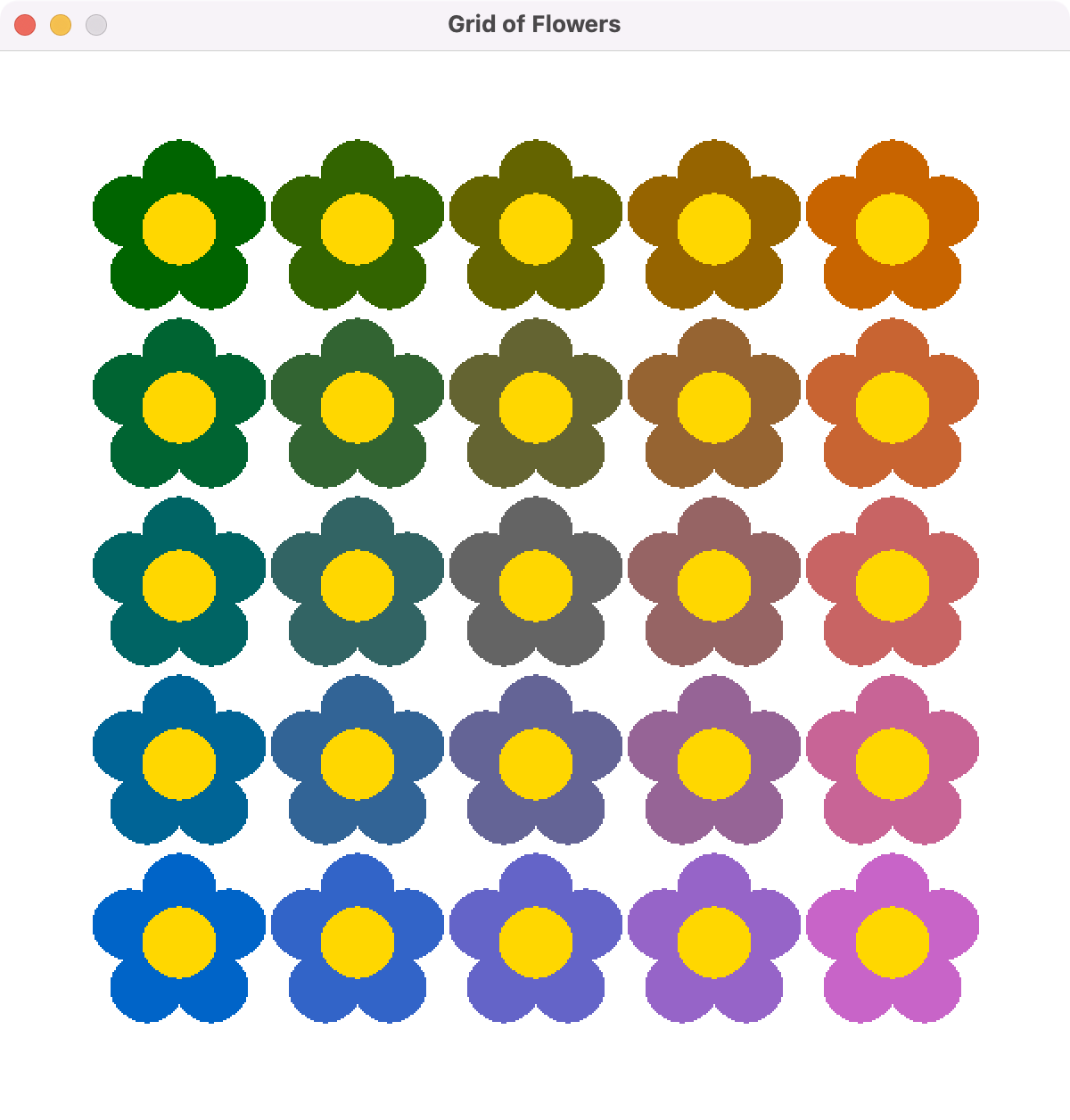

Point At

Returns a point at the given location.

Parameters:

Name	Type	Description
x	`Double`	The x value of the coordinate
y	`Double`	The y value of the coordinate

Return Type: Point 2d

Signatures:

point_2d point_at(double x, double y)

public static Point2D Geometry.PointAt(double x, double y);
public static Point2D SplashKit.PointAt(double x, double y);

def point_at(x, y):

function PointAt(x: Double; y: Double): Point2D

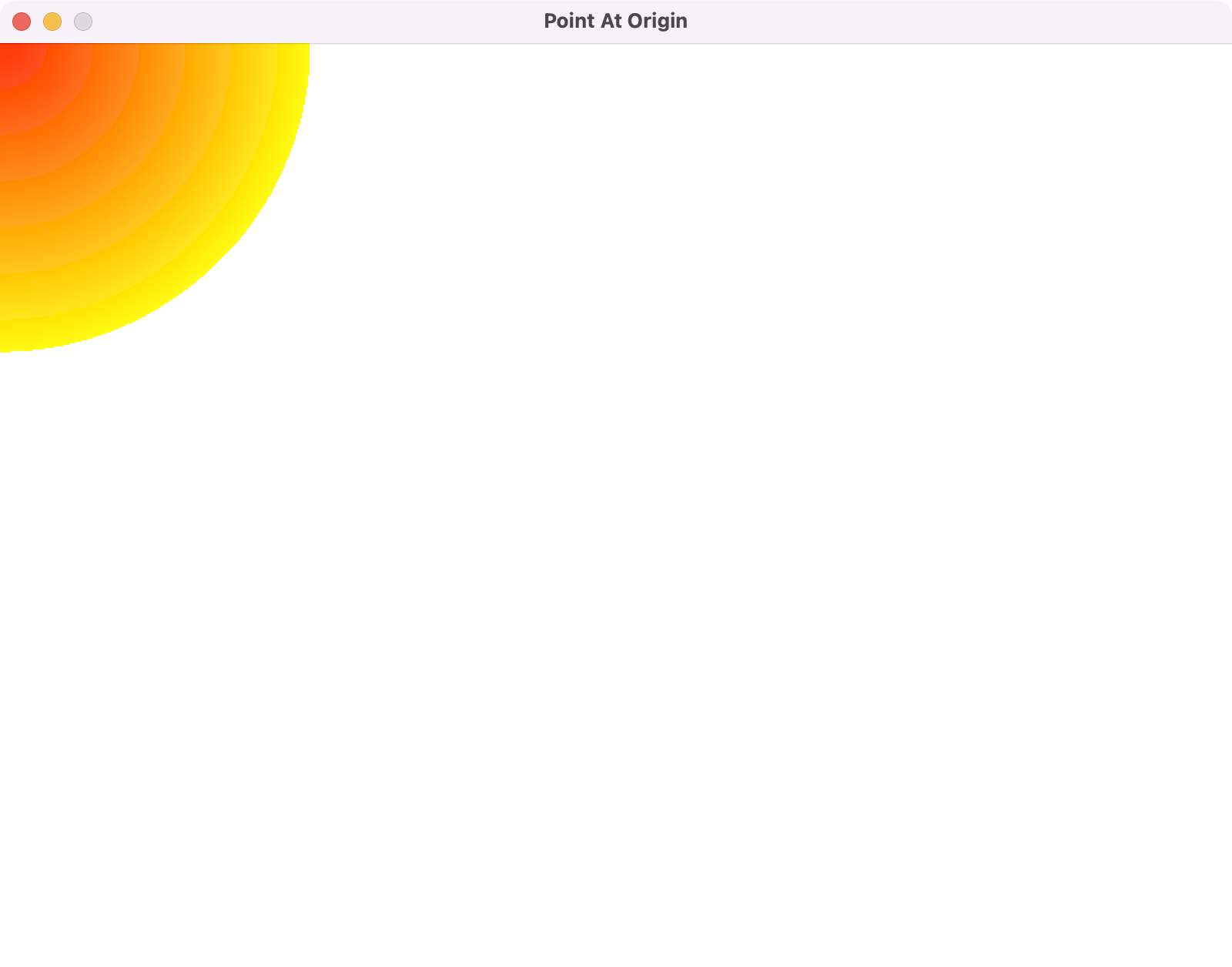

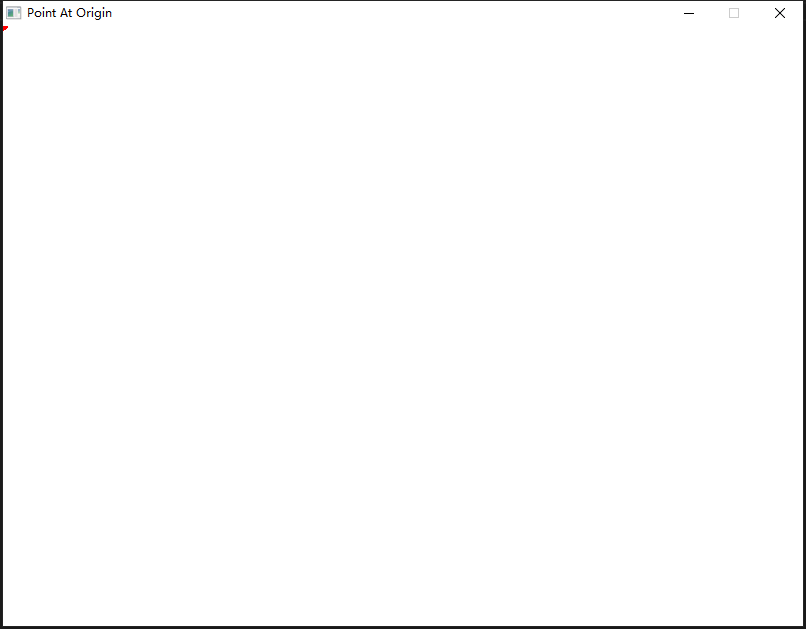

Point At Origin

Returns a point representing the origin.

Return Type: Point 2d

Signatures:

point_2d point_at_origin()

public static Point2D Geometry.PointAtOrigin();
public static Point2D SplashKit.PointAtOrigin();

def point_at_origin():

function PointAtOrigin(): Point2D

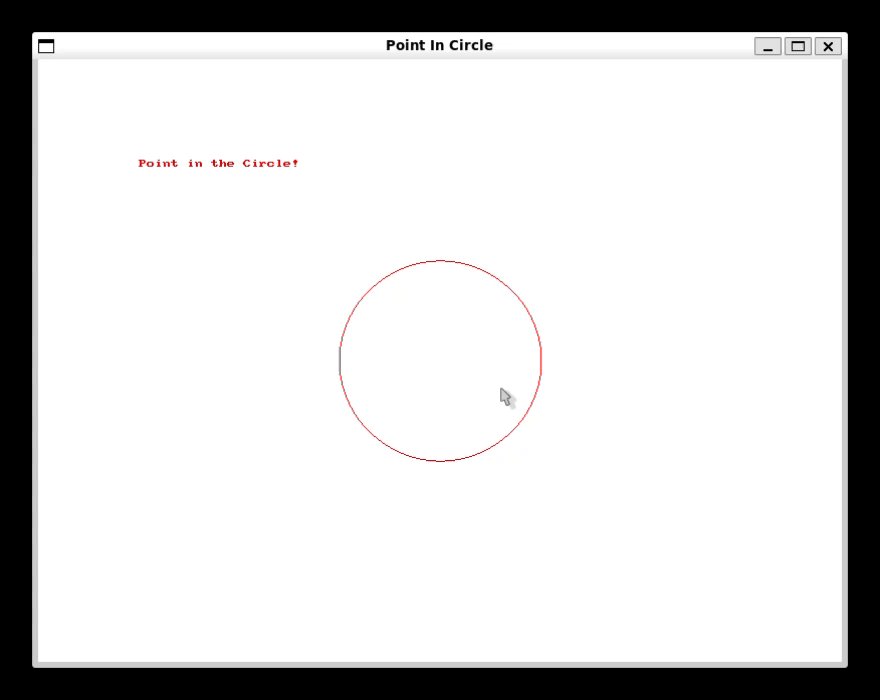

Point In Circle

Returns true if the point pt is in the circle c.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point to test
c	`Circle`	The circle to check

Return Type: Boolean

Signatures:

bool point_in_circle(const point_2d &pt, const circle &c)

public static bool Geometry.PointInCircle(Point2D pt, Circle c);
public static bool SplashKit.PointInCircle(Point2D pt, Circle c);

def point_in_circle(pt, c):

function PointInCircle(const pt: Point2D; const c: Circle): Boolean

Point In Circle

Return true if the point is in the circle.

Parameters:

Name	Type	Description
ptx	`Double`	the x value of the point
pty	`Double`	the y value of the point
cx	`Double`	the x value of the centre of the circle
cy	`Double`	the y value of the centre of the circle
radius	`Double`	the radius of the circle

Return Type: Boolean

Signatures:

bool point_in_circle(double ptx, double pty, double cx, double cy, double radius)

public static bool Geometry.PointInCircle(double ptx, double pty, double cx, double cy, double radius);
public static bool SplashKit.PointInCircle(double ptx, double pty, double cx, double cy, double radius);

def point_in_circle_with_values(ptx, pty, cx, cy, radius):

function PointInCircle(ptx: Double; pty: Double; cx: Double; cy: Double; radius: Double): Boolean

Point In Quad

Tests if a point is in a quad.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point to test.
q	`Quad`	The quad to check if the point is within.

Return Type: Boolean

Signatures:

bool point_in_quad(const point_2d &pt, const quad &q)

public static bool Geometry.PointInQuad(Point2D pt, Quad q);
public static bool SplashKit.PointInQuad(Point2D pt, Quad q);

def point_in_quad(pt, q):

function PointInQuad(const pt: Point2D; const q: Quad): Boolean

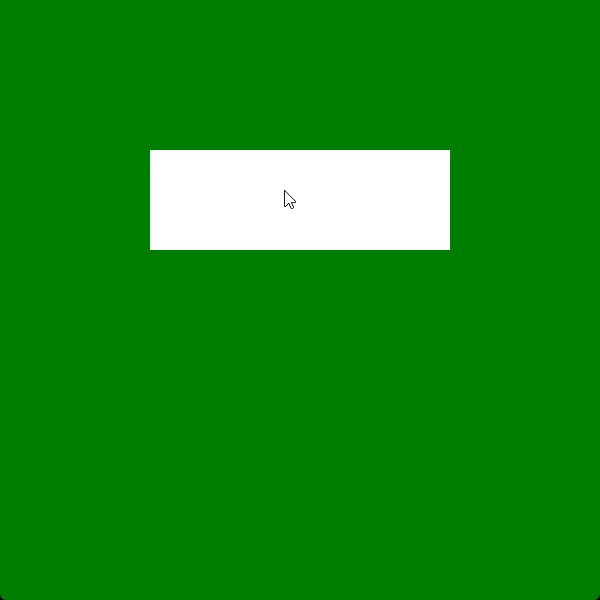

Point In Rectangle

Returns true if point pt is in the Rectangle rect.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point to test
rect	`Rectangle`	The rectangle to check

Return Type: Boolean

Signatures:

bool point_in_rectangle(const point_2d &pt, const rectangle &rect)

public static bool Geometry.PointInRectangle(Point2D pt, Rectangle rect);
public static bool SplashKit.PointInRectangle(Point2D pt, Rectangle rect);

def point_in_rectangle(pt, rect):

function PointInRectangle(const pt: Point2D; const rect: Rectangle): Boolean

Point In Rectangle

Returns true if the point is within the bounds of a Rectangle.

Parameters:

Name	Type	Description
ptx	`Double`	the x value of the point
pty	`Double`	the y value of the point
rect_x	`Double`	x value of the rectangle
rect_y	`Double`	y value of the rectangle
rect_width	`Double`	width of the rectangle
rect_height	`Double`	height of the rectangle

Return Type: Boolean

Signatures:

bool point_in_rectangle(double ptx, double pty, double rect_x, double rect_y, double rect_width, double rect_height)

public static bool Geometry.PointInRectangle(double ptx, double pty, double rectX, double rectY, double rectWidth, double rectHeight);
public static bool SplashKit.PointInRectangle(double ptx, double pty, double rectX, double rectY, double rectWidth, double rectHeight);

def point_in_rectangle_with_values(ptx, pty, rect_x, rect_y, rect_width, rect_height):

function PointInRectangle(ptx: Double; pty: Double; rectX: Double; rectY: Double; rectWidth: Double; rectHeight: Double): Boolean

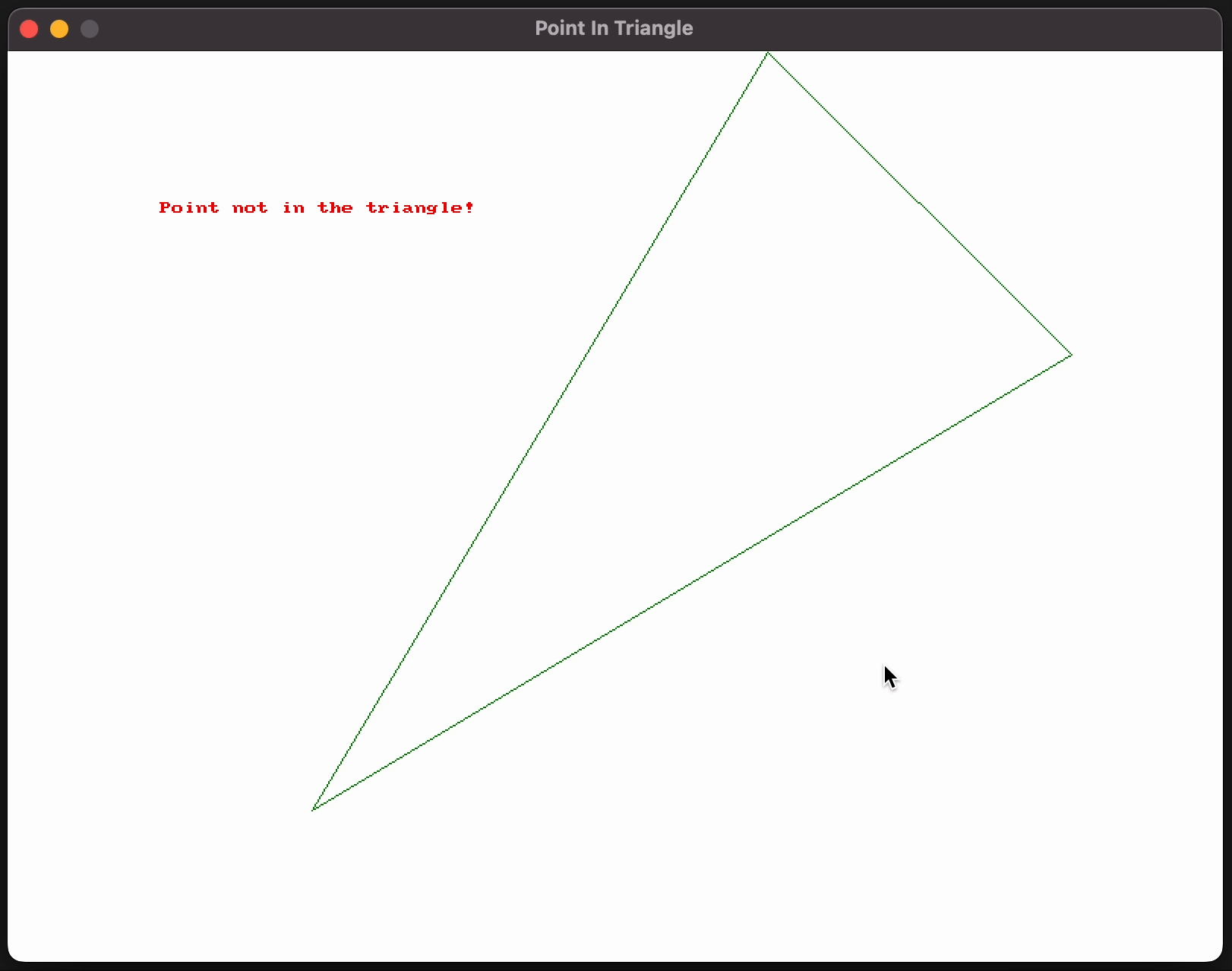

Point In Triangle

Returns true if the point pt is in the Triangle tri.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point to test
tri	`Triangle`	The triangle to check

Return Type: Boolean

Signatures:

bool point_in_triangle(const point_2d &pt, const triangle &tri)

public static bool Geometry.PointInTriangle(Point2D pt, Triangle tri);
public static bool SplashKit.PointInTriangle(Point2D pt, Triangle tri);

def point_in_triangle(pt, tri):

function PointInTriangle(const pt: Point2D; const tri: Triangle): Boolean

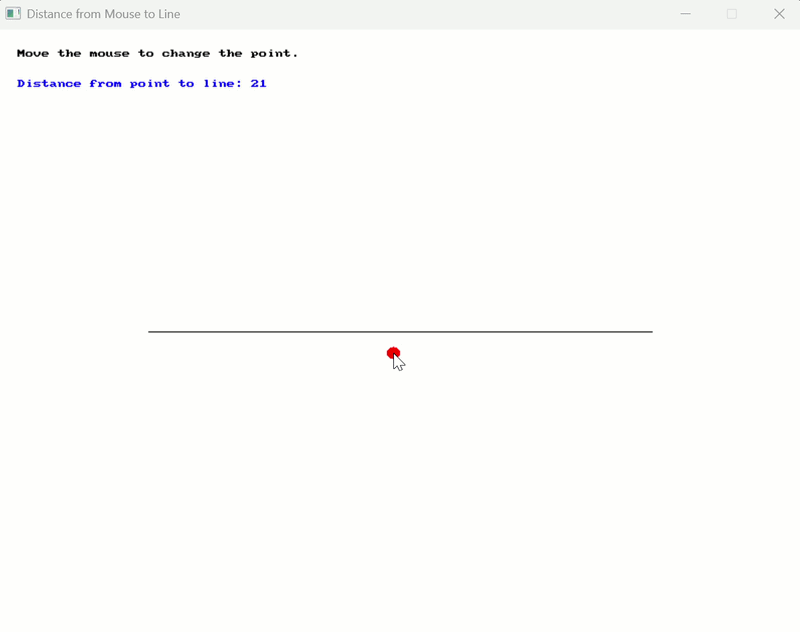

Point Line Distance

Returns the distance from a point to a line.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point
l	`Line`	The line

Return Type: Float

Signatures:

float point_line_distance(const point_2d &pt, const line &l)

public static float Geometry.PointLineDistance(Point2D pt, Line l);
public static float SplashKit.PointLineDistance(Point2D pt, Line l);

def point_line_distance(pt, l):

function PointLineDistance(const pt: Point2D; const l: Line): Single

Point Offset By

Calculate the Point 2d that is offset from the start_point by the offset

Parameters:

Name	Type	Description
start_point	`Point 2d`	The starting point
offset	`Vector 2d`	The distance and direction to move

Return Type: Point 2d

Signatures:

point_2d point_offset_by(const point_2d &start_point, const vector_2d &offset)

public static Point2D Geometry.PointOffsetBy(Point2D startPoint, Vector2D offset);
public static Point2D SplashKit.PointOffsetBy(Point2D startPoint, Vector2D offset);

def point_offset_by(start_point, offset):

function PointOffsetBy(const startPoint: Point2D; const offset: Vector2D): Point2D

Point Offset From Origin

Returns the point offset from the origin by the provided vector.

Parameters:

Name	Type	Description
offset	`Vector 2d`	The distance and direction to move

Return Type: Point 2d

Signatures:

point_2d point_offset_from_origin(const vector_2d &offset)

public static Point2D Geometry.PointOffsetFromOrigin(Vector2D offset);
public static Point2D SplashKit.PointOffsetFromOrigin(Vector2D offset);

def point_offset_from_origin(offset):

function PointOffsetFromOrigin(const offset: Vector2D): Point2D

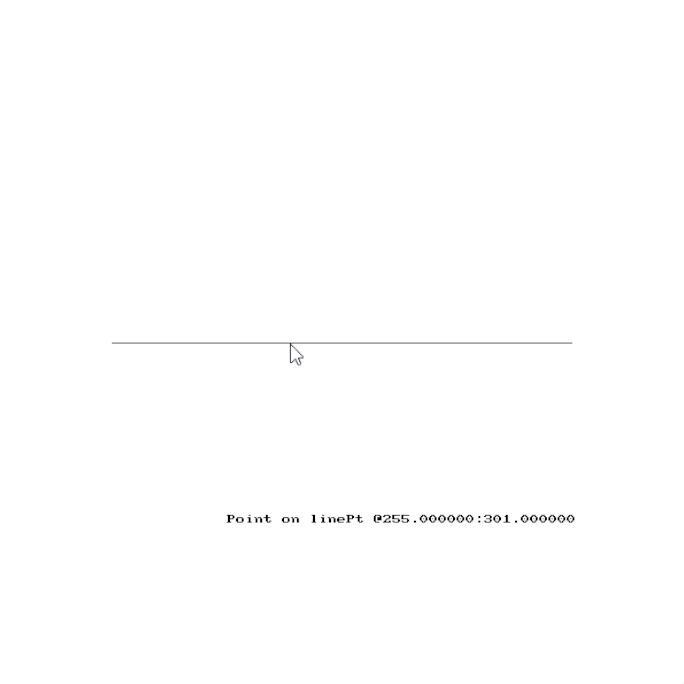

Point On Line

Returns true if point pt is on the line l.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point to test
l	`Line`	The line to check

Return Type: Boolean

Signatures:

bool point_on_line(const point_2d &pt, const line &l)

public static bool Geometry.PointOnLine(Point2D pt, Line l);
public static bool SplashKit.PointOnLine(Point2D pt, Line l);

def point_on_line(pt, l):

function PointOnLine(const pt: Point2D; const l: Line): Boolean

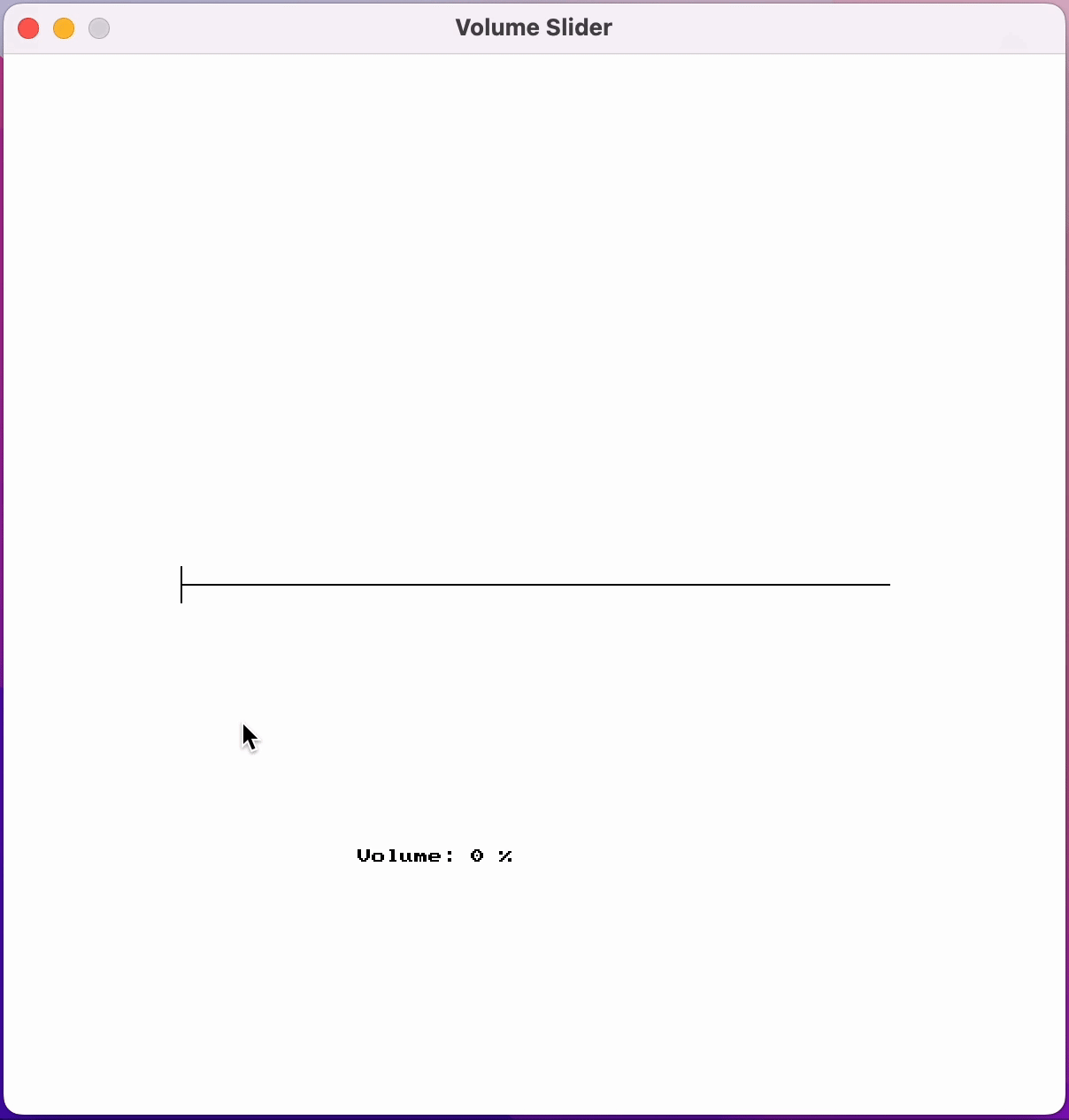

Point On Line

Returns true when the point pt is on the line l. The proximity value is used to set the sensitivity — higher values effectively make the line thicker.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point to test
l	`Line`	The line to check
proximity	`Float`	The sensitivity to allow close approximities

Return Type: Boolean

Signatures:

bool point_on_line(const point_2d &pt, const line &l, float proximity)

public static bool Geometry.PointOnLine(Point2D pt, Line l, float proximity);
public static bool SplashKit.PointOnLine(Point2D pt, Line l, float proximity);

def point_on_line_with_proximity(pt, l, proximity):

function PointOnLine(const pt: Point2D; const l: Line; proximity: Single): Boolean

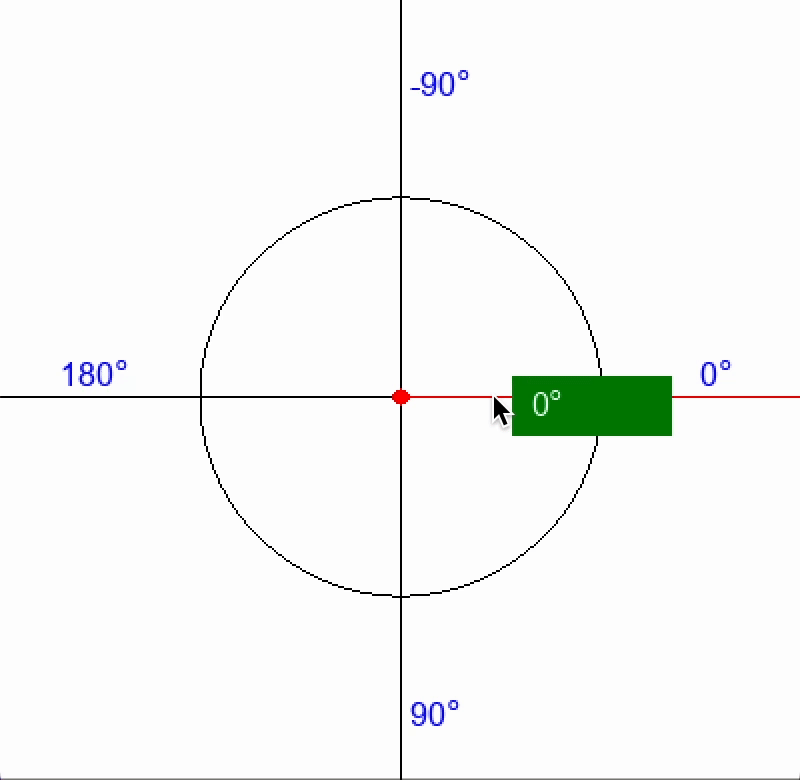

Point Point Angle

Returns the angle between two points in degrees.

Parameters:

Name	Type	Description
pt1	`Point 2d`	The first point
pt2	`Point 2d`	The other point

Return Type: Float

Signatures:

float point_point_angle(const point_2d &pt1, const point_2d &pt2)

public static float Geometry.PointPointAngle(Point2D pt1, Point2D pt2);
public static float SplashKit.PointPointAngle(Point2D pt1, Point2D pt2);

def point_point_angle(pt1, pt2):

function PointPointAngle(const pt1: Point2D; const pt2: Point2D): Single

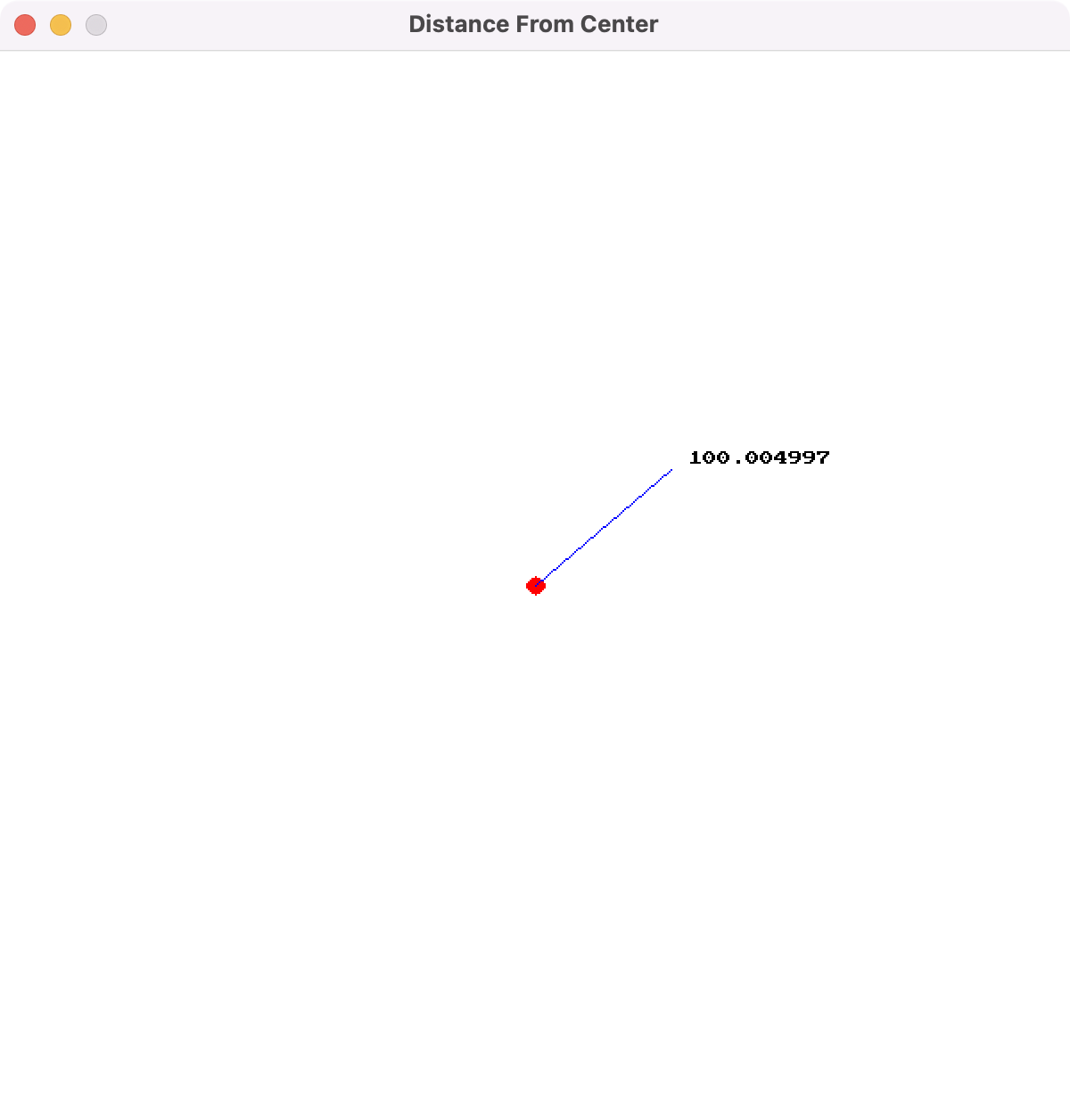

Point Point Distance

Returns the distance between two points.

Parameters:

Name	Type	Description
pt1	`Point 2d`	The first point
pt2	`Point 2d`	The other point

Return Type: Float

Signatures:

float point_point_distance(const point_2d &pt1, const point_2d &pt2)

public static float Geometry.PointPointDistance(Point2D pt1, Point2D pt2);
public static float SplashKit.PointPointDistance(Point2D pt1, Point2D pt2);

def point_point_distance(pt1, pt2):

function PointPointDistance(const pt1: Point2D; const pt2: Point2D): Single

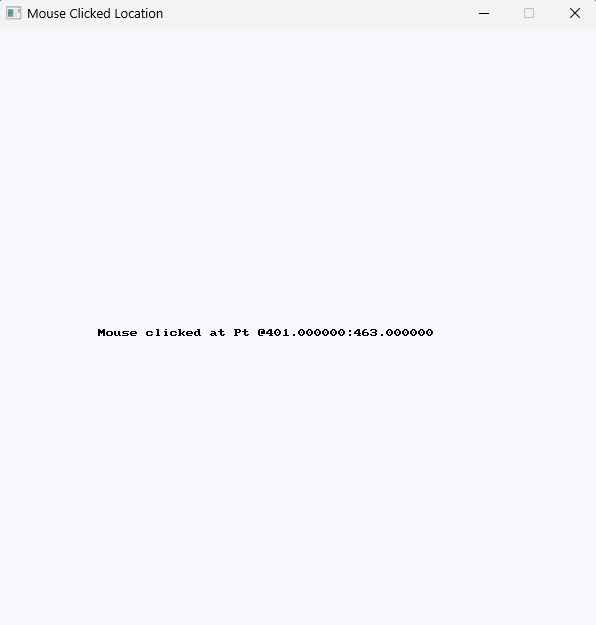

Point To String

Get a text description of the Point 2d.

Parameters:

Name	Type	Description
pt	`Point 2d`	The point details

Return Type: String

Signatures:

string point_to_string(const point_2d &pt)

public static string Geometry.PointToString(Point2D pt);
public static string SplashKit.PointToString(Point2D pt);

def point_to_string(pt):

function PointToString(const pt: Point2D): String

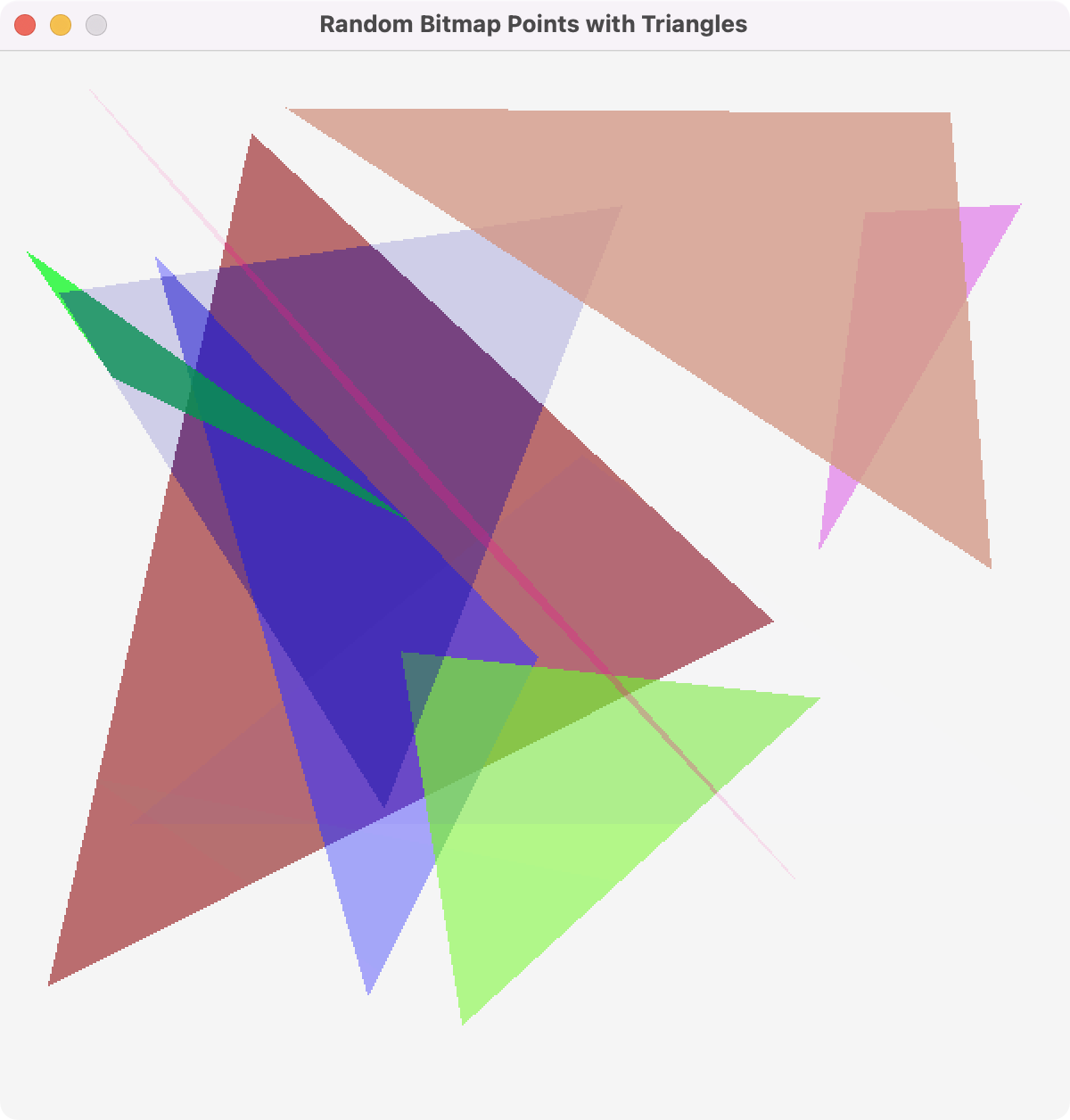

Random Bitmap Point

Returns a random point within the bounds of the bitmap.

Parameters:

Name	Type	Description
bmp	`Bitmap`	The bitmap

Return Type: Point 2d

Signatures:

point_2d random_bitmap_point(bitmap bmp)

public static Point2D Geometry.RandomBitmapPoint(Bitmap bmp);
public static Point2D SplashKit.RandomBitmapPoint(Bitmap bmp);

def random_bitmap_point(bmp):

function RandomBitmapPoint(bmp: Bitmap): Point2D

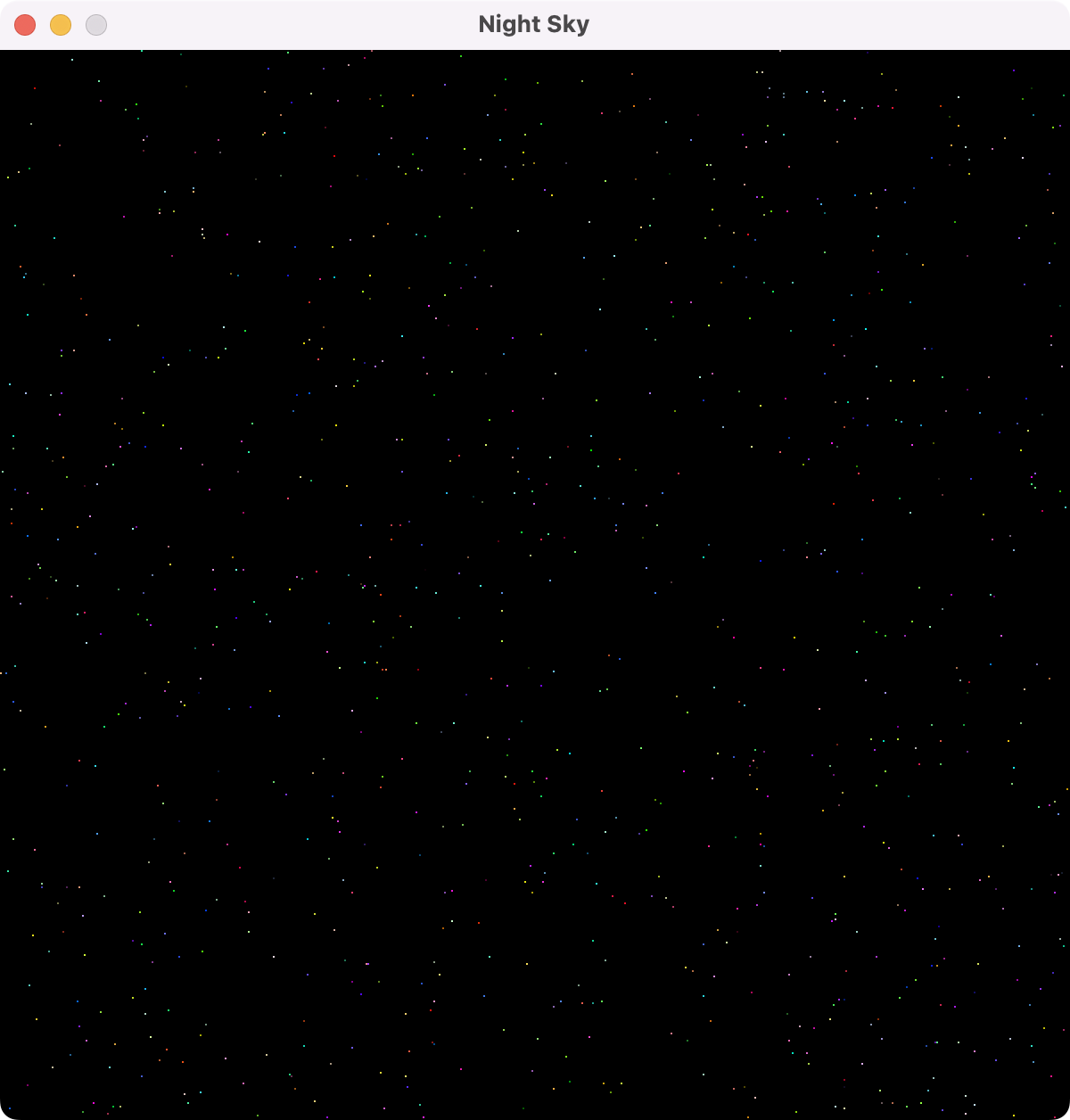

Random Screen Point

Returns a random point on the current window.

Return Type: Point 2d

Signatures:

point_2d random_screen_point()

public static Point2D Geometry.RandomScreenPoint();
public static Point2D SplashKit.RandomScreenPoint();

def random_screen_point():

function RandomScreenPoint(): Point2D

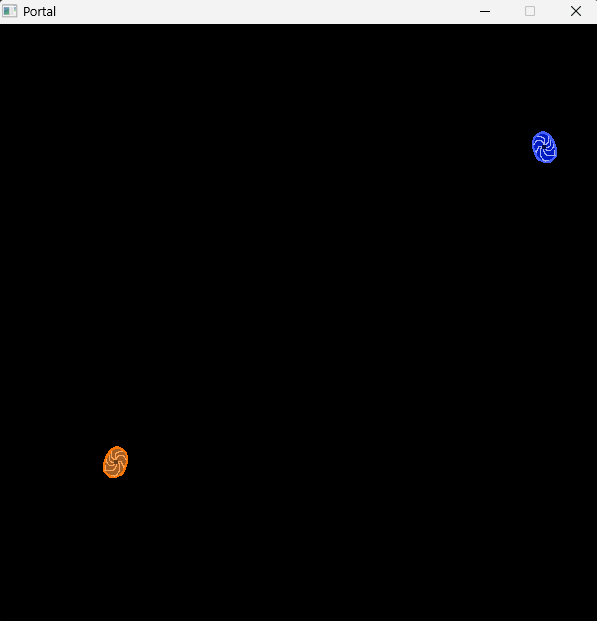

Random Window Point

Returns a random point on the provided window.

Parameters:

Name	Type	Description
wind	`Window`	The window

Return Type: Point 2d

Signatures:

point_2d random_window_point(window wind)

public static Point2D Geometry.RandomWindowPoint(Window wind);
public static Point2D SplashKit.RandomWindowPoint(Window wind);

def random_window_point(wind):

function RandomWindowPoint(wind: Window): Point2D

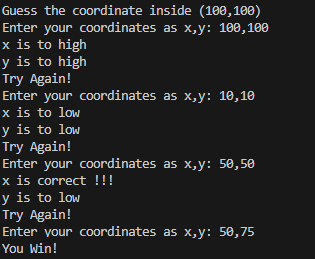

Same Point

Returns True of pt1 is at the same point as pt2. This checks at an integer level, indicating the two points refer to the same pixel.

Parameters:

Name	Type	Description
pt1	`Point 2d`	The first point
pt2	`Point 2d`	The other point

Return Type: Boolean

Signatures:

bool same_point(const point_2d &pt1, const point_2d &pt2)

public static bool Geometry.SamePoint(Point2D pt1, Point2D pt2);
public static bool SplashKit.SamePoint(Point2D pt1, Point2D pt2);

def same_point(pt1, pt2):

function SamePoint(const pt1: Point2D; const pt2: Point2D): Boolean

Quad From

Returns a quad from the passed in points.

Parameters:

Name	Type	Description
p1	`Point 2d`	The top left of the quad.
p2	`Point 2d`	The top right of the quad
p3	`Point 2d`	The bottom left of the quad
p4	`Point 2d`	The bottom right of the quad

Return Type: Quad

Signatures:

quad quad_from(const point_2d &p1, const point_2d &p2, const point_2d &p3, const point_2d &p4)

public static Quad Geometry.QuadFrom(Point2D p1, Point2D p2, Point2D p3, Point2D p4);
public static Quad SplashKit.QuadFrom(Point2D p1, Point2D p2, Point2D p3, Point2D p4);

def quad_from_points(p1, p2, p3, p4):

function QuadFrom(const p1: Point2D; const p2: Point2D; const p3: Point2D; const p4: Point2D): Quad

Quad From

Returns a quad from the x-y points of a given recatangle

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle to convert to a quad

Return Type: Quad

Signatures:

quad quad_from(const rectangle &rect)

public static Quad Geometry.QuadFrom(Rectangle rect);
public static Quad SplashKit.QuadFrom(Rectangle rect);

def quad_from_rectangle(rect):

function QuadFrom(const rect: Rectangle): Quad

Quad From

Returns a quad from the rectangle, then applies the transformation to the quads points.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle to transform to a quad.
transform	`Matrix 2d`	A transform to apply to the resulting quad.

Return Type: Quad

Signatures:

quad quad_from(const rectangle &rect, const matrix_2d &transform)

public static Quad Geometry.QuadFrom(Rectangle rect, Matrix2D transform);
public static Quad SplashKit.QuadFrom(Rectangle rect, Matrix2D transform);

def quad_from_rectangle_with_transformation(rect, transform):

function QuadFrom(const rect: Rectangle; const transform: Matrix2D): Quad

Quad From

Returns a quad for the passed in x & y points.

Parameters:

Name	Type	Description
x_top_left	`Double`	X coordinate of the top left of the quad
y_top_left	`Double`	Y coordinate of the top left of the quad
x_top_right	`Double`	X coordinate of the top right of the quad
y_top_right	`Double`	Y coordinate of the top right of the quad
x_bottom_left	`Double`	X coordinate of the bottom left of the quad
y_bottom_left	`Double`	Y coordinate of the bottom left of the quad
x_bottom_right	`Double`	X coordinate of the bottom right of the quad
y_bottom_right	`Double`	Y coordinate of the bottom right of the quad

Return Type: Quad

Signatures:

quad quad_from(double x_top_left, double y_top_left, double x_top_right, double y_top_right, double x_bottom_left, double y_bottom_left, double x_bottom_right, double y_bottom_right)

public static Quad Geometry.QuadFrom(double xTopLeft, double yTopLeft, double xTopRight, double yTopRight, double xBottomLeft, double yBottomLeft, double xBottomRight, double yBottomRight);
public static Quad SplashKit.QuadFrom(double xTopLeft, double yTopLeft, double xTopRight, double yTopRight, double xBottomLeft, double yBottomLeft, double xBottomRight, double yBottomRight);

def quad_from(x_top_left, y_top_left, x_top_right, y_top_right, x_bottom_left, y_bottom_left, x_bottom_right, y_bottom_right):

function QuadFrom(xTopLeft: Double; yTopLeft: Double; xTopRight: Double; yTopRight: Double; xBottomLeft: Double; yBottomLeft: Double; xBottomRight: Double; yBottomRight: Double): Quad

Quads Intersect

Returns true if two quads intersect.

Parameters:

Name	Type	Description
q1	`Quad`	The first quad
q2	`Quad`	The second quad

Return Type: Boolean

Signatures:

bool quads_intersect(const quad &q1, const quad &q2)

public static bool Geometry.QuadsIntersect(Quad q1, Quad q2);
public static bool SplashKit.QuadsIntersect(Quad q1, Quad q2);

def quads_intersect(q1, q2):

function QuadsIntersect(const q1: Quad; const q2: Quad): Boolean

Set Quad Point

Change a point in a quad.

Parameters:

Name	Type	Description
q	`Quad`	The quad to change
idx	`Integer`	The index of the point: 0 is top left, 1 is top right, 2 is bottom left, and 3 is bottom right
value	`Point 2d`	The new value for that point in the quad

Signatures:

void set_quad_point(quad &q, int idx, const point_2d &value)

public static void Geometry.SetQuadPoint(ref Quad q, int idx, Point2D value);
public static void SplashKit.SetQuadPoint(ref Quad q, int idx, Point2D value);

def set_quad_point(q, idx, value):

procedure SetQuadPoint(var q: Quad; idx: Integer; const value: Point2D)

Triangles From

Returns the two triangles that make up a quad in a vector.

Parameters:

Name	Type	Description
q	`Quad`	The quad

Return Type: Vector

Signatures:

vector<triangle> triangles_from(const quad &q)

public static List<Triangle> Geometry.TrianglesFrom(Quad q);
public static List<Triangle> SplashKit.TrianglesFrom(Quad q);

def triangles_from(q):

function TrianglesFrom(const q: Quad): ArrayOfTriangle

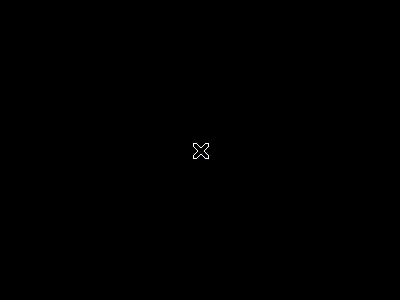

Inset Rectangle

Return a rectangle that is inset an amount from a given rectangle.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle to inset
inset_amount	`Float`	The amount to inset the rectangle

Return Type: Rectangle

Signatures:

rectangle inset_rectangle(const rectangle &rect, float inset_amount)

public static Rectangle Geometry.InsetRectangle(Rectangle rect, float insetAmount);
public static Rectangle SplashKit.InsetRectangle(Rectangle rect, float insetAmount);

def inset_rectangle(rect, inset_amount):

function InsetRectangle(const rect: Rectangle; insetAmount: Single): Rectangle

Intersection

Returns a rectangle that represents the intersection of two rectangles.

Parameters:

Name	Type	Description
rect1	`Rectangle`	The first rectangle
rect2	`Rectangle`	The second rectangle

Return Type: Rectangle

Signatures:

rectangle intersection(const rectangle &rect1, const rectangle &rect2)

public static Rectangle Geometry.Intersection(Rectangle rect1, Rectangle rect2);
public static Rectangle SplashKit.Intersection(Rectangle rect1, Rectangle rect2);

def intersection(rect1, rect2):

function Intersection(const rect1: Rectangle; const rect2: Rectangle): Rectangle

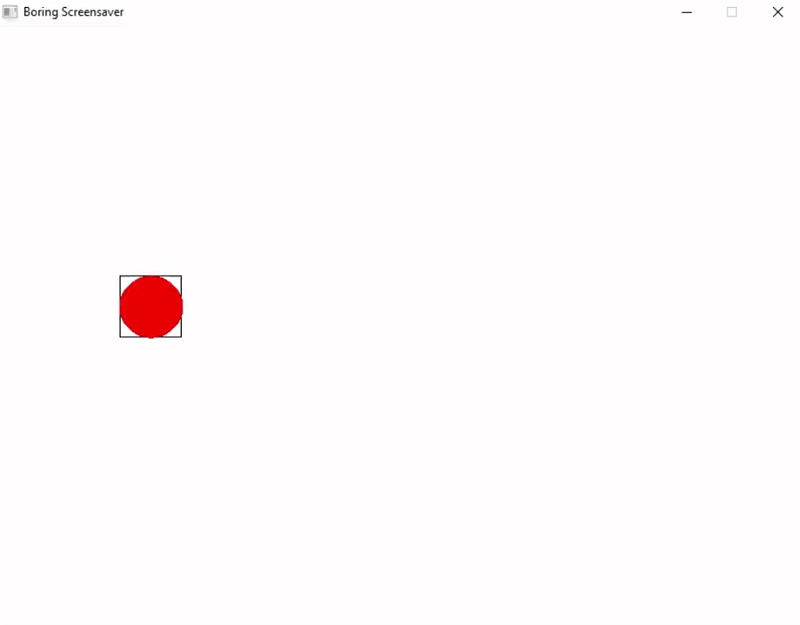

Rectangle Around

Returns a rectangle that surrounds a given circle

Parameters:

Name	Type	Description
c	`Circle`	The circle

Return Type: Rectangle

Signatures:

rectangle rectangle_around(const circle &c)

public static Rectangle Geometry.RectangleAround(Circle c);
public static Rectangle SplashKit.RectangleAround(Circle c);

def rectangle_around_circle(c):

function RectangleAround(const c: Circle): Rectangle

Rectangle Around

Returns a rectangle that surrounds a given line segment

Parameters:

Name	Type	Description
l	`Line`	The line

Return Type: Rectangle

Signatures:

rectangle rectangle_around(const line &l)

public static Rectangle Geometry.RectangleAround(Line l);
public static Rectangle SplashKit.RectangleAround(Line l);

def rectangle_around_line(l):

function RectangleAround(const l: Line): Rectangle

Rectangle Around

Returns a rectangle that surrounds a given quad.

Parameters:

Name	Type	Description
q	`Quad`	The quad

Return Type: Rectangle

Signatures:

rectangle rectangle_around(const quad &q)

public static Rectangle Geometry.RectangleAround(Quad q);
public static Rectangle SplashKit.RectangleAround(Quad q);

def rectangle_around_quad(q):

function RectangleAround(const q: Quad): Rectangle

Rectangle Around

Returns a rectangle that surrounds a given triangle

Parameters:

Name	Type	Description
t	`Triangle`	The triangle

Return Type: Rectangle

Signatures:

rectangle rectangle_around(const triangle &t)

public static Rectangle Geometry.RectangleAround(Triangle t);
public static Rectangle SplashKit.RectangleAround(Triangle t);

def rectangle_around_triangle(t):

function RectangleAround(const t: Triangle): Rectangle

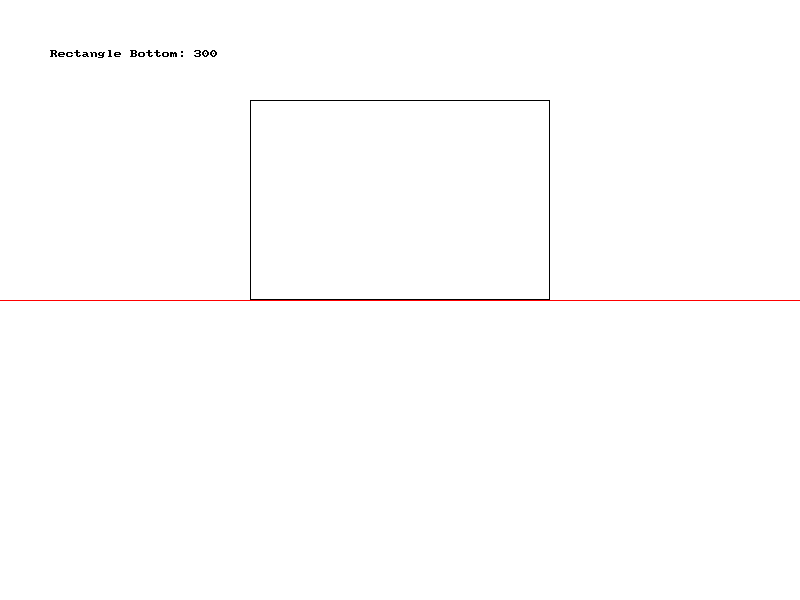

Rectangle Bottom

The location of the bottom of the rectangle.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle.

Return Type: Float

Signatures:

float rectangle_bottom(const rectangle &rect)

public static float Geometry.RectangleBottom(Rectangle rect);
public static float SplashKit.RectangleBottom(Rectangle rect);

def rectangle_bottom(rect):

function RectangleBottom(const rect: Rectangle): Single

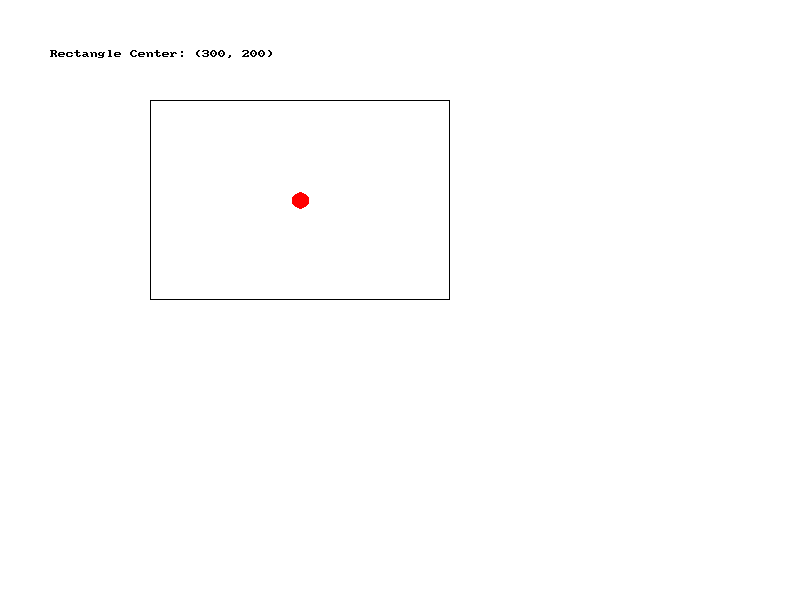

Rectangle Center

Returns the center point of a given rectangle

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle

Return Type: Point 2d

Signatures:

point_2d rectangle_center(const rectangle &rect)

public static Point2D Geometry.RectangleCenter(Rectangle rect);
public static Point2D SplashKit.RectangleCenter(Rectangle rect);

def rectangle_center(rect):

function RectangleCenter(const rect: Rectangle): Point2D

Rectangle From

Returns a rectangle at the specified point with a given width and height

Parameters:

Name	Type	Description
pt	`Point 2d`	The origin for the rectangle
width	`Double`	Its width
height	`Double`	Its height

Return Type: Rectangle

Signatures:

rectangle rectangle_from(const point_2d pt, const double width, const double height)

public static Rectangle Geometry.RectangleFrom(Point2D pt, double width, double height);
public static Rectangle SplashKit.RectangleFrom(Point2D pt, double width, double height);

def rectangle_from_point_and_size(pt, width, height):

function RectangleFrom(pt: Point2D; width: Double; height: Double): Rectangle

Rectangle From

Returns a rectangle with pt1 and pt2 defining the two distant edge points.

Parameters:

Name	Type	Description
pt1	`Point 2d`	The first point
pt2	`Point 2d`	The second point

Return Type: Rectangle

Signatures:

rectangle rectangle_from(const point_2d pt1, const point_2d pt2)

public static Rectangle Geometry.RectangleFrom(Point2D pt1, Point2D pt2);
public static Rectangle SplashKit.RectangleFrom(Point2D pt1, Point2D pt2);

def rectangle_from_points(pt1, pt2):

function RectangleFrom(pt1: Point2D; pt2: Point2D): Rectangle

Rectangle From

Returns a rectangle from a given x,y location with the specified width and height.

Parameters:

Name	Type	Description
x	`Double`	The x coordinate of the rectangle
y	`Double`	The y coordinate of the rectangle
width	`Double`	The width of the rectangle
height	`Double`	The height of the rectangle

Return Type: Rectangle

Signatures:

rectangle rectangle_from(double x, double y, double width, double height)

public static Rectangle Geometry.RectangleFrom(double x, double y, double width, double height);
public static Rectangle SplashKit.RectangleFrom(double x, double y, double width, double height);

def rectangle_from(x, y, width, height):

function RectangleFrom(x: Double; y: Double; width: Double; height: Double): Rectangle

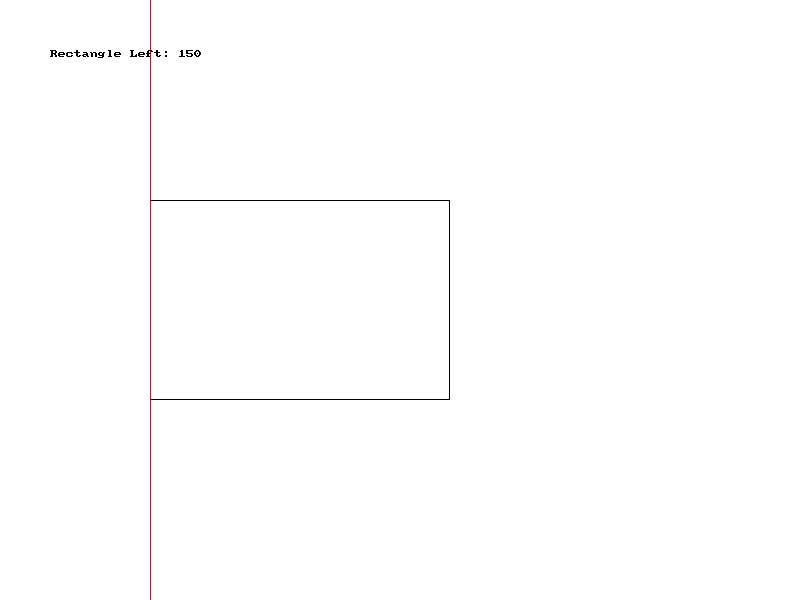

Rectangle Left

The location of the left edge of the rectangle.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle.

Return Type: Float

Signatures:

float rectangle_left(const rectangle &rect)

public static float Geometry.RectangleLeft(Rectangle rect);
public static float SplashKit.RectangleLeft(Rectangle rect);

def rectangle_left(rect):

function RectangleLeft(const rect: Rectangle): Single

Rectangle Offset By

Returns a rectangle that is moved by the provided vector.

Parameters:

Name	Type	Description
rect	`Rectangle`	The original rectangle
offset	`Vector 2d`	The amount and direction for the rectangle to move

Return Type: Rectangle

Signatures:

rectangle rectangle_offset_by(const rectangle &rect, const vector_2d &offset)

public static Rectangle Geometry.RectangleOffsetBy(Rectangle rect, Vector2D offset);
public static Rectangle SplashKit.RectangleOffsetBy(Rectangle rect, Vector2D offset);

def rectangle_offset_by(rect, offset):

function RectangleOffsetBy(const rect: Rectangle; const offset: Vector2D): Rectangle

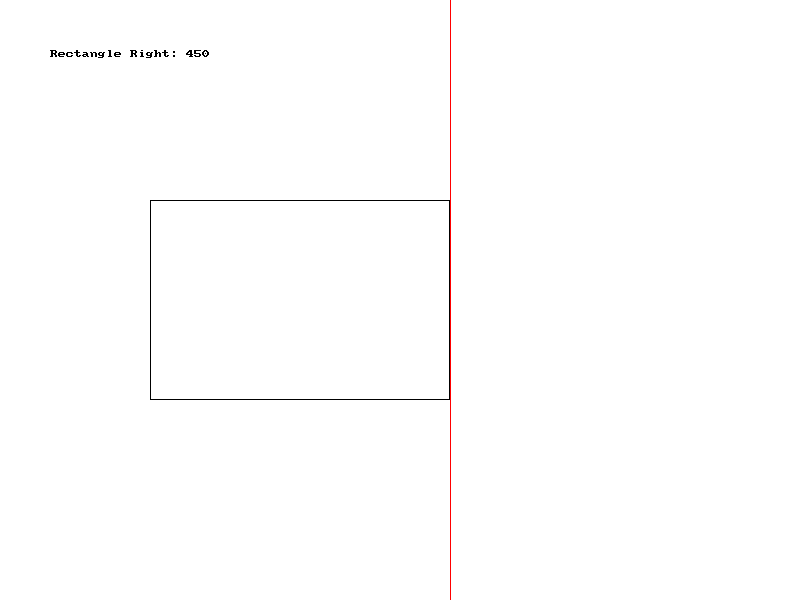

Rectangle Right

The location of the right edge of the rectangle.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle.

Return Type: Float

Signatures:

float rectangle_right(const rectangle &rect)

public static float Geometry.RectangleRight(Rectangle rect);
public static float SplashKit.RectangleRight(Rectangle rect);

def rectangle_right(rect):

function RectangleRight(const rect: Rectangle): Single

Rectangle To String

Get a text representation of the passed in rectangle.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle

Return Type: String

Signatures:

string rectangle_to_string(const rectangle &rect)

public static string Geometry.RectangleToString(Rectangle rect);
public static string SplashKit.RectangleToString(Rectangle rect);

def rectangle_to_string(rect):

function RectangleToString(const rect: Rectangle): String

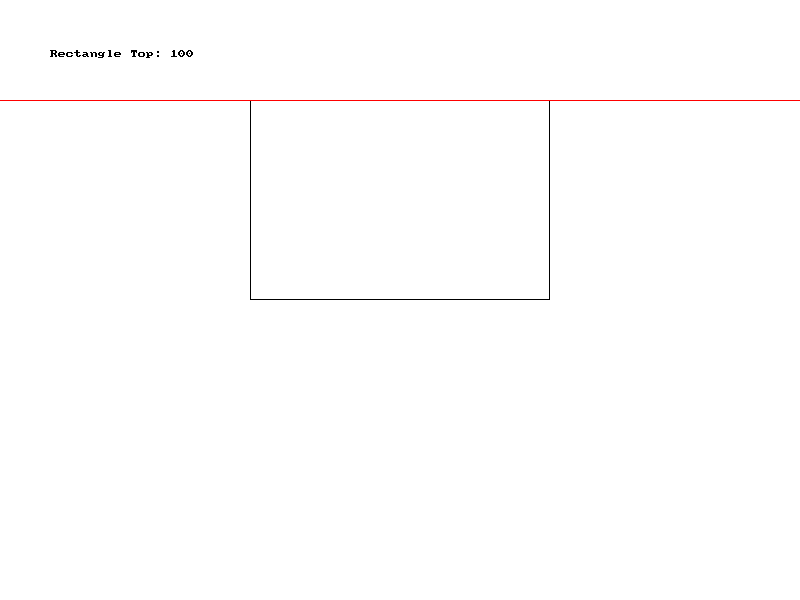

Rectangle Top

The top of the rectangle.

Parameters:

Name	Type	Description
rect	`Rectangle`	The rectangle.

Return Type: Float

Signatures:

float rectangle_top(const rectangle &rect)

public static float Geometry.RectangleTop(Rectangle rect);
public static float SplashKit.RectangleTop(Rectangle rect);

def rectangle_top(rect):

function RectangleTop(const rect: Rectangle): Single

Rectangles Intersect

Returns true if the two rectangles intersect.

Parameters:

Name	Type	Description
rect1	`Rectangle`	The first rectangle
rect2	`Rectangle`	The second rectangle

Return Type: Boolean

Signatures:

bool rectangles_intersect(const rectangle &rect1, const rectangle &rect2)

public static bool Geometry.RectanglesIntersect(Rectangle rect1, Rectangle rect2);
public static bool SplashKit.RectanglesIntersect(Rectangle rect1, Rectangle rect2);

def rectangles_intersect(rect1, rect2):

function RectanglesIntersect(const rect1: Rectangle; const rect2: Rectangle): Boolean

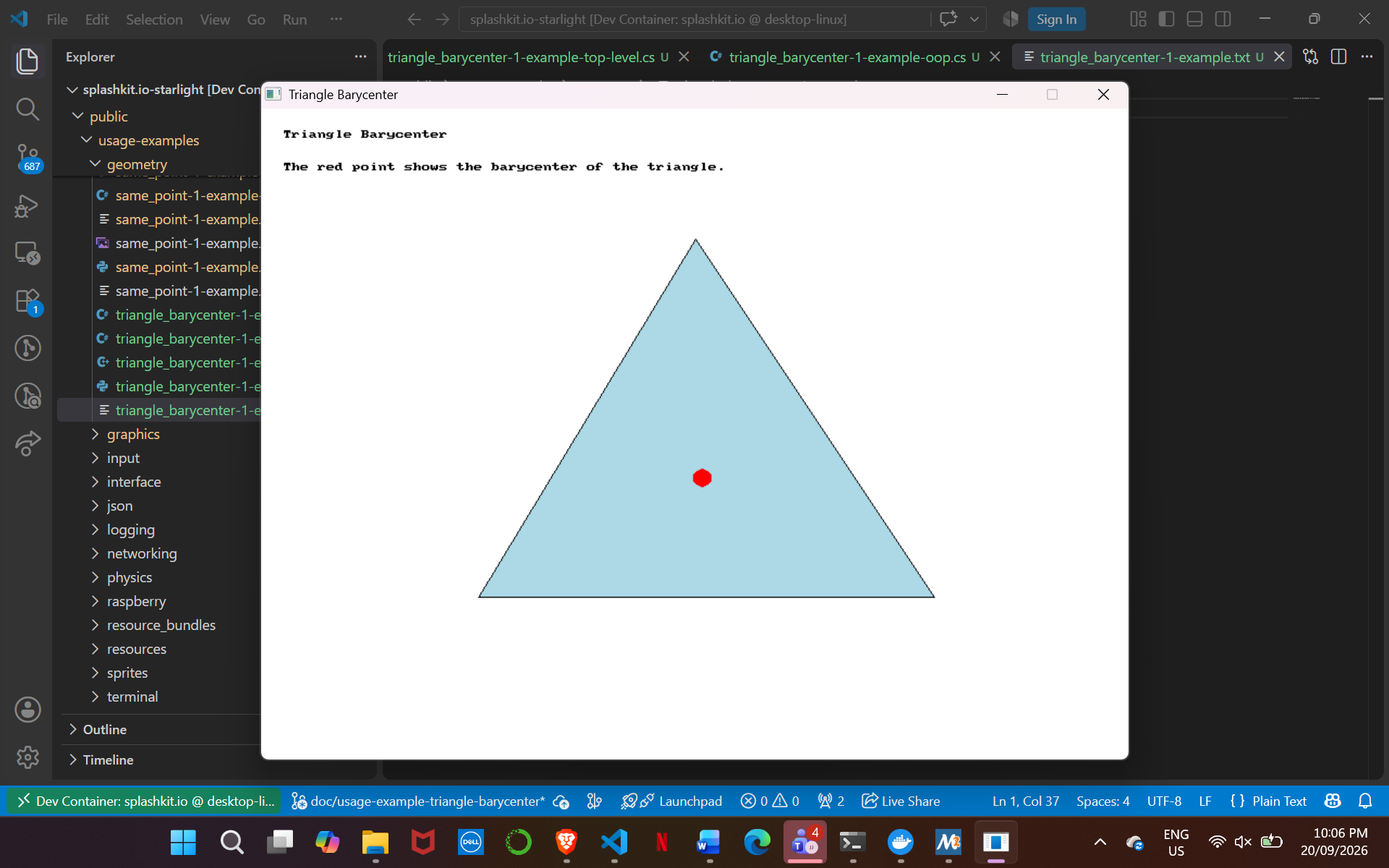

Triangle Barycenter

Return the barycenter of the triangle. This is one way of calculating the center point of a triangle.

Parameters:

Name	Type	Description
tri	`Triangle`	The triangle to get the center of

Return Type: Point 2d

Signatures:

point_2d triangle_barycenter(const triangle &tri)

public static Point2D Geometry.TriangleBarycenter(Triangle tri);
public static Point2D SplashKit.TriangleBarycenter(Triangle tri);

def triangle_barycenter(tri):

function TriangleBarycenter(const tri: Triangle): Point2D

Triangle From

Generate a triangle from a set of points.

Parameters:

Name	Type	Description
p1	`Point 2d`	The first point of the triangle
p2	`Point 2d`	The second point of the triangle
p3	`Point 2d`	The third point of the triangle

Return Type: Triangle

Signatures:

triangle triangle_from(const point_2d &p1, const point_2d &p2, const point_2d &p3)

public static Triangle Geometry.TriangleFrom(Point2D p1, Point2D p2, Point2D p3);
public static Triangle SplashKit.TriangleFrom(Point2D p1, Point2D p2, Point2D p3);

def triangle_from(p1, p2, p3):

function TriangleFrom(const p1: Point2D; const p2: Point2D; const p3: Point2D): Triangle

Triangle From

Generate a triangle from a set of points.

Parameters:

Name	Type	Description
x1	`Double`	The x coordinate for the first point
y1	`Double`	The y coordinate for the first point
x2	`Double`	The x coordinate for the second point
y2	`Double`	The y coordinate for the second point
x3	`Double`	The x coordinate for the third point
y3	`Double`	The y coordinate for the third point

Return Type: Triangle

Signatures:

triangle triangle_from(double x1, double y1, double x2, double y2, double x3, double y3)

public static Triangle Geometry.TriangleFrom(double x1, double y1, double x2, double y2, double x3, double y3);
public static Triangle SplashKit.TriangleFrom(double x1, double y1, double x2, double y2, double x3, double y3);

def triangle_from__from_coordinates(x1, y1, x2, y2, x3, y3):

function TriangleFrom(x1: Double; y1: Double; x2: Double; y2: Double; x3: Double; y3: Double): Triangle

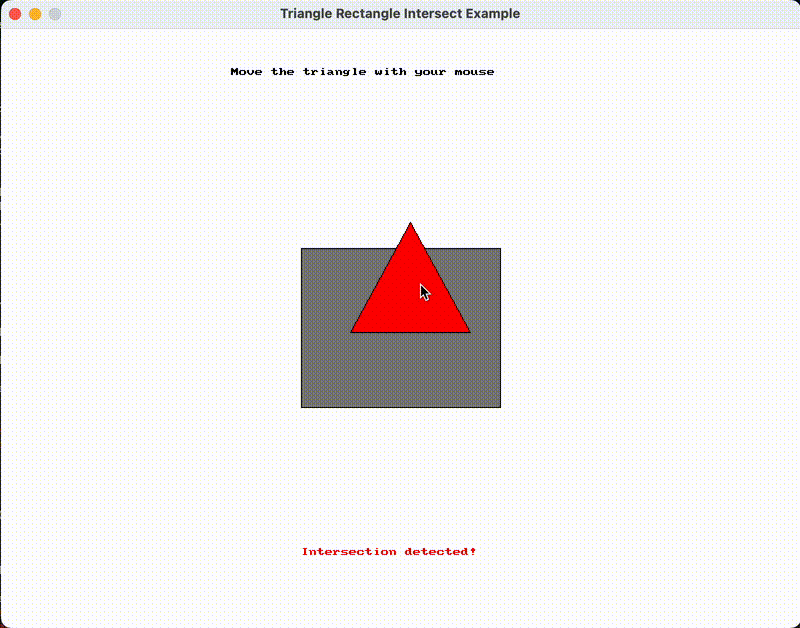

Triangle Rectangle Intersect

Returns true if the triangle intersects with the rectangle.

Parameters:

Name	Type	Description
tri	`Triangle`	The triangle to test
rect	`Rectangle`	The rectangle to test

Return Type: Boolean

Signatures:

bool triangle_rectangle_intersect(const triangle &tri, const rectangle &rect)

public static bool Geometry.TriangleRectangleIntersect(Triangle tri, Rectangle rect);
public static bool SplashKit.TriangleRectangleIntersect(Triangle tri, Rectangle rect);

def triangle_rectangle_intersect(tri, rect):

function TriangleRectangleIntersect(const tri: Triangle; const rect: Rectangle): Boolean

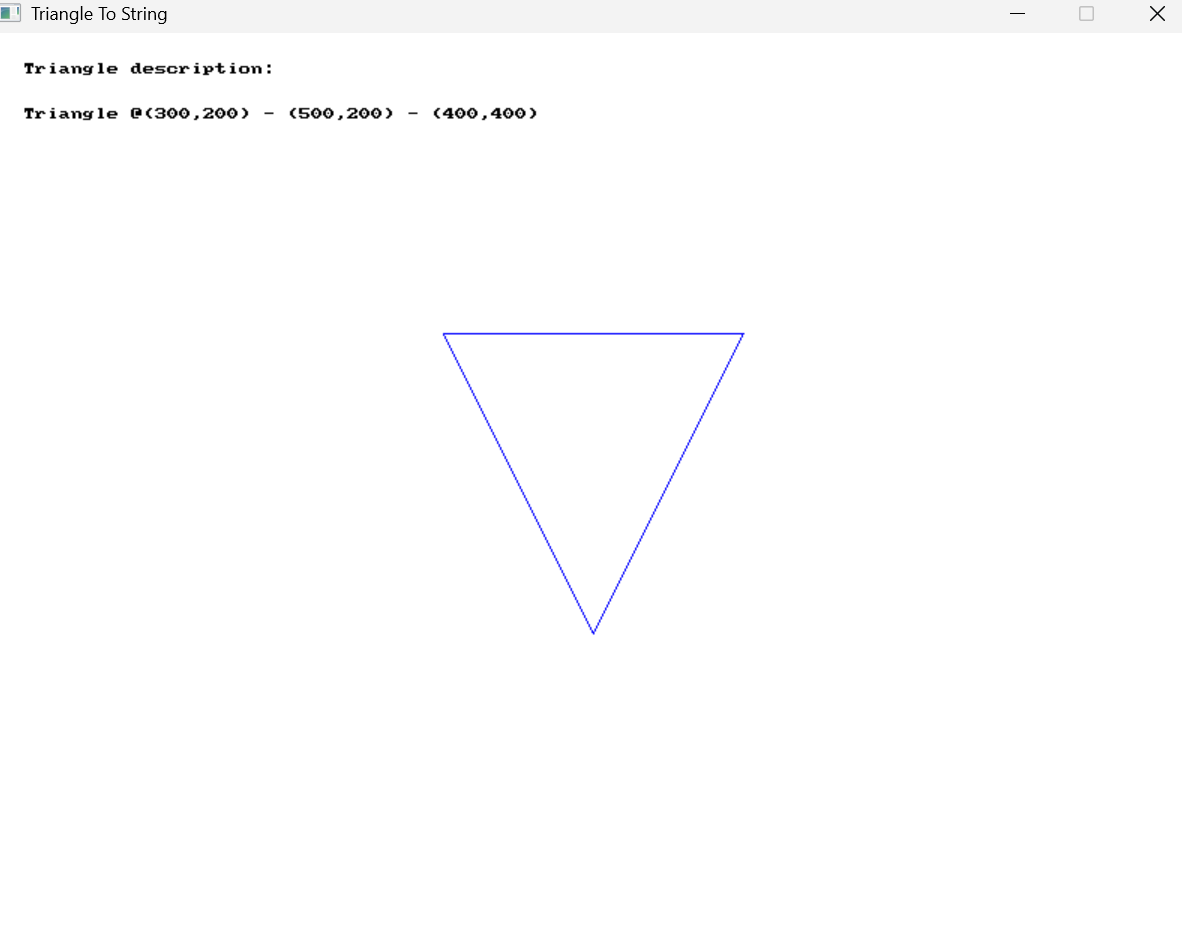

Triangle To String

Returns a text description of the triangle.

Parameters:

Name	Type	Description
tri	`Triangle`	The triangle

Return Type: String

Signatures:

string triangle_to_string(const triangle &tri)

public static string Geometry.TriangleToString(Triangle tri);
public static string SplashKit.TriangleToString(Triangle tri);

def triangle_to_string(tri):

function TriangleToString(const tri: Triangle): String

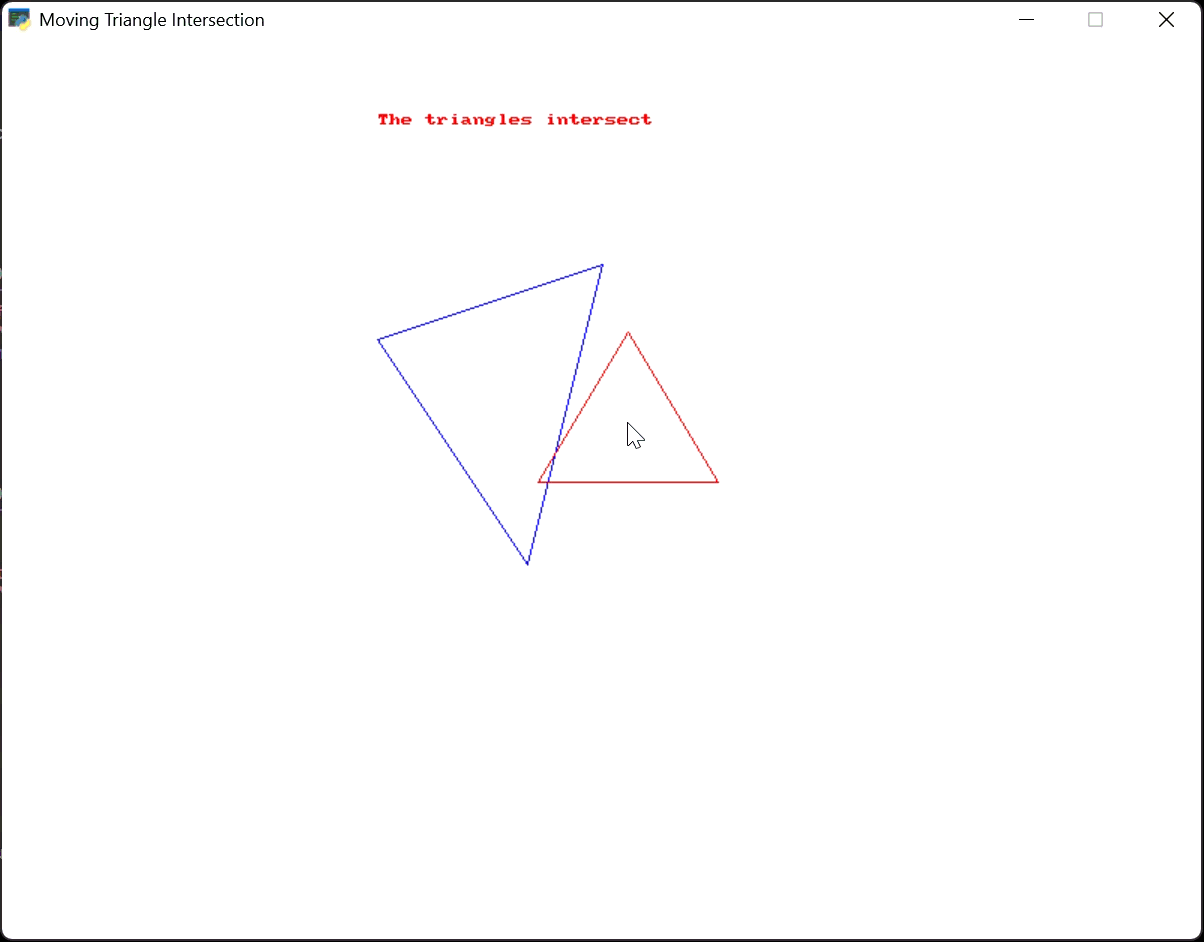

Triangles Intersect

Returns true if the two triangles intersect.

Parameters:

Name	Type	Description
t1	`Triangle`	The first triangle
t2	`Triangle`	The other triangle

Return Type: Boolean

Signatures:

bool triangles_intersect(const triangle &t1, const triangle &t2)

public static bool Geometry.TrianglesIntersect(Triangle t1, Triangle t2);
public static bool SplashKit.TrianglesIntersect(Triangle t1, Triangle t2);

def triangles_intersect(t1, t2):

function TrianglesIntersect(const t1: Triangle; const t2: Triangle): Boolean
